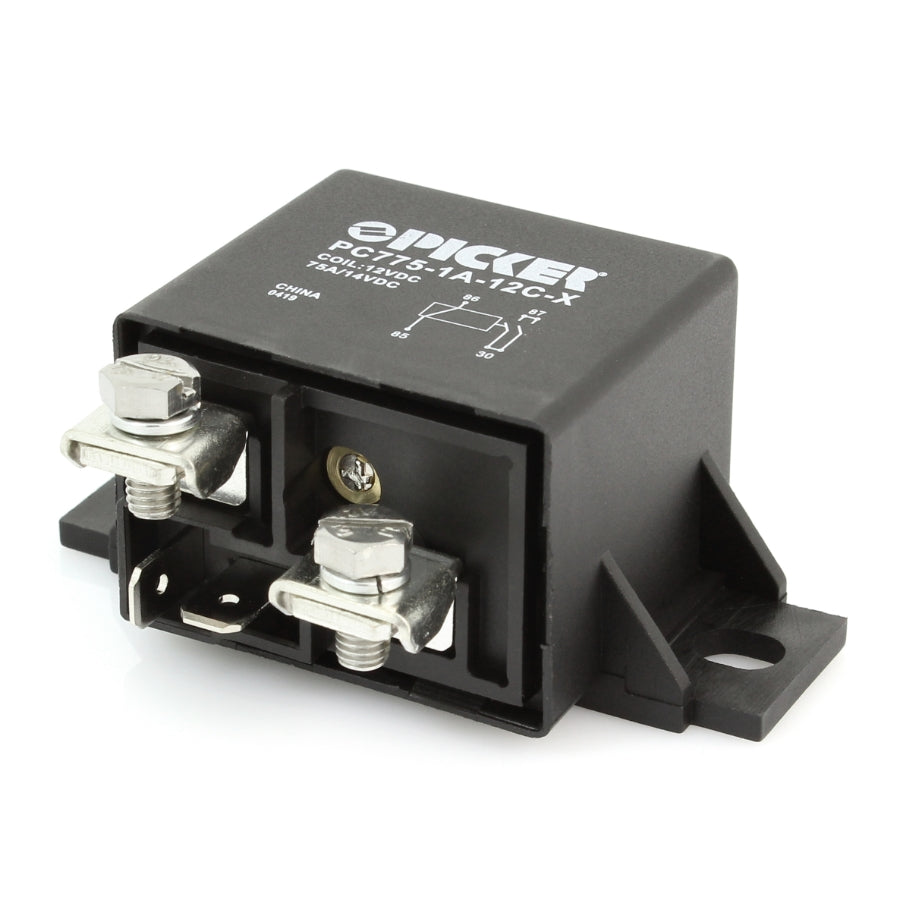

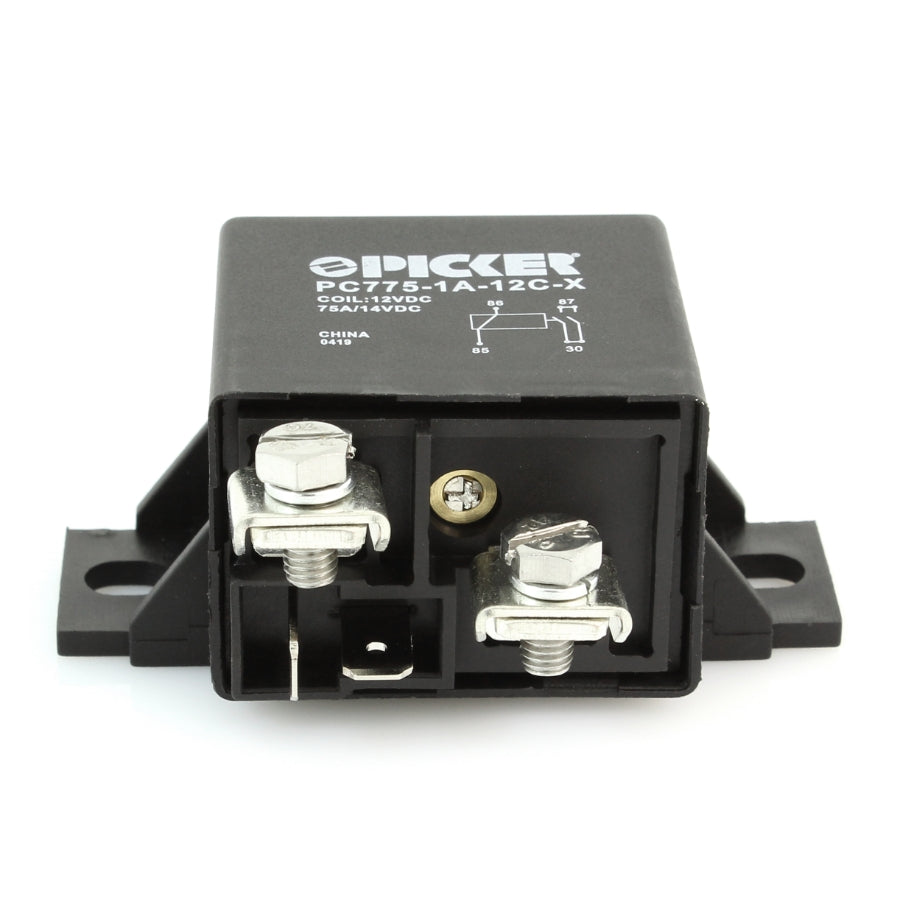

Picker PC775-1A-12C-X 12V 75A Relay Replaces TE Bosch Peterbilt Marine LS-Swap
Picker PC775-1A-12C-X 12V 75A Relay Replaces TE Bosch Peterbilt Marine LS-Swap is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
2 Year Warranty Guaranteed
2 Year Warranty Guaranteed
All new products sold by FalconSupply include a 90-day return policy and a 2-year full warranty. This ensures your purchase is guaranteed to be free from defects for a full 2 years from the date of shipment. If a product fails under normal use, we will provide a free prepaid return shipping label.
Delivery and Shipping
Delivery and Shipping
- Free Shipping on all orders over $50.
- Same-Day Shipping on orders placed before 1pm ET.
- Fast Transit: Estimated delivery within 1-6 business days.
Product Overview
The Picker PC775-1A-12C-X is a 12V DC electromechanical power relay designed for high-amperage switching in industrial, marine, and automotive architectures. Rated for 75A continuous current at 25°C and 150A maximum inrush capacity, this SPST-NO component functions as an exact structural and electrical replacement for heavy-duty machinery. Equipped with a bifurcated hybrid contact system featuring Tungsten pre-contacts, it ensures reliable continuous current routing for commercial trucking, marine power distribution, and high-performance custom engine builds.
Equipment Applications & Compatibility
- Commercial Trucking: Serves as a direct electrical drop-in replacement for Peterbilt and Freightliner accessory circuits, managing heavy continuous loads.
- Marine & Aquatic: Compatible replacement for high-draw marine power trim and tilt systems, and heavy-duty battery isolator architectures.
- Automotive & Customization: Engineered for high-performance BMW accessory systems and custom LS-engine swap power distribution networks.
- Industrial & Utility: Replaces factory relays in air ride suspension compressors and commercial lift gate motor circuits.
- Exact OEM Cross-Reference: Visually and functionally identical replacement for TE Connectivity V23232-D0001-X001 and V23232-D0001-Y001; Bosch 0332002168, 0332002150, and 0332002155; and Hella 965400001 (4RA 933 332-001).
- Included Component: This listing includes exactly (1) standalone Picker PC775-1A-12C-X 12V 75A Power Relay.
Relay Specifications
- Coil Voltage: 12V DC (50 Ohms Resistance)
- Current Rating: 75 Amps Continuous (150A Max Switching)
- Circuitry: SPST-NO (Single Pole Single Throw, Normally Open)
- Contact Material: Tungsten (W) Pre-Contacts / Silver Tin Oxide (AgSnO2) Main Contacts
- Terminal Type: (2) M5 Screw Terminals (Load) / (2) .250" Blade Terminals (Coil)
- Housing Rating: IP54 (Dust Protected & Water Resistant)
- Operating Temperature: -40°C to 125°C (-40°F to 257°F)
