Square D QO 30 Amp Circuit Breaker - 2-Pole (QO230)
Product Overview

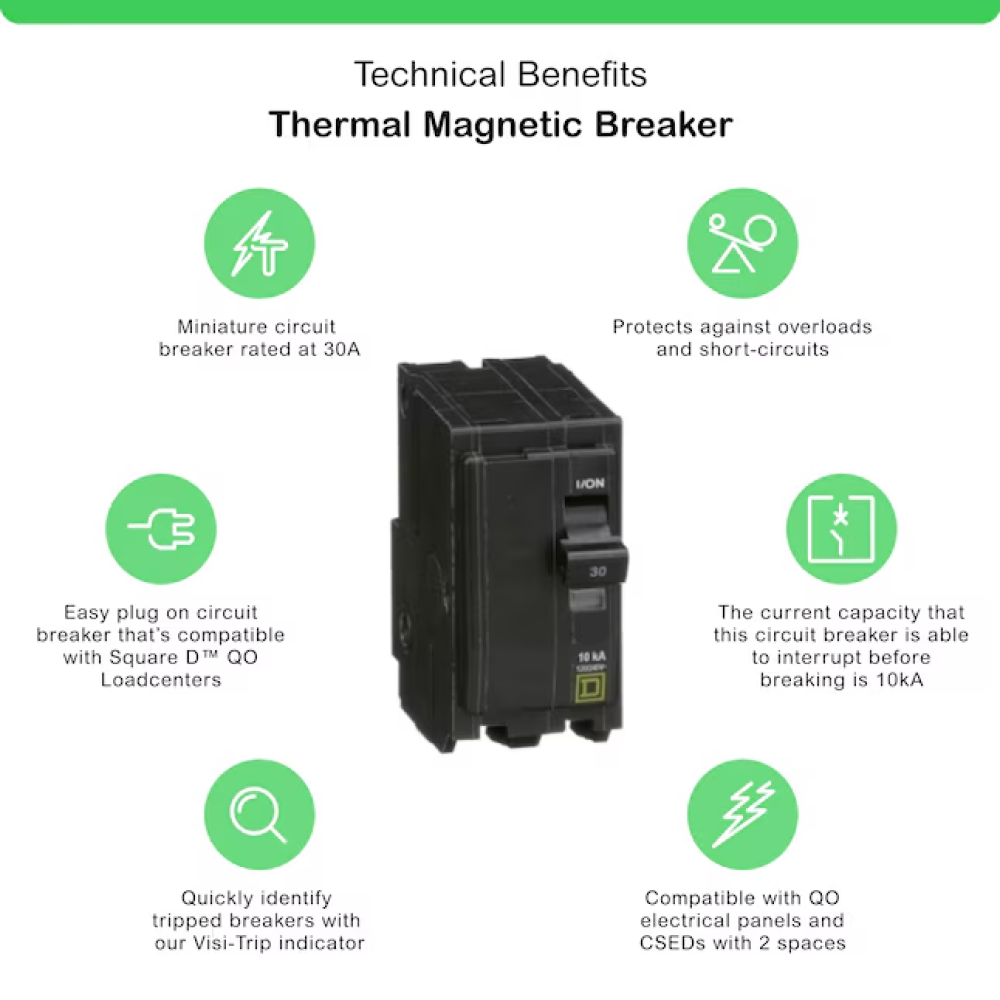

The Square D QO 30 Amp Circuit Breaker (QO230) is a premium thermal-magnetic, 2-pole breaker designed for residential and commercial overload protection. Featuring the exclusive Visi-Trip™ indicator, this breaker displays a highly visible red flag when tripped, allowing for instant identification of the faulted circuit.
Rated for 120/240V AC, this breaker provides a 10,000 AIR (10 kAIC) interrupting rating and plugs directly into Square D QO load centers, NQ panelboards, and Speed-D switchboards.
Common Applications: Electric clothes dryers, electric water heaters (4500W+), and central air conditioning condensers (2.5 to 3 ton).
Technical Specifications
- Brand: Square D (by Schneider Electric)
- Series: QO (Plug-On)
- Model: QO230
- Amperage: 30 Amps
- Poles: 2-Pole
- Voltage: 120/240V AC
- Connection: Plug-On
- Wire Size: Accepts #14–8 AWG (Al/Cu)

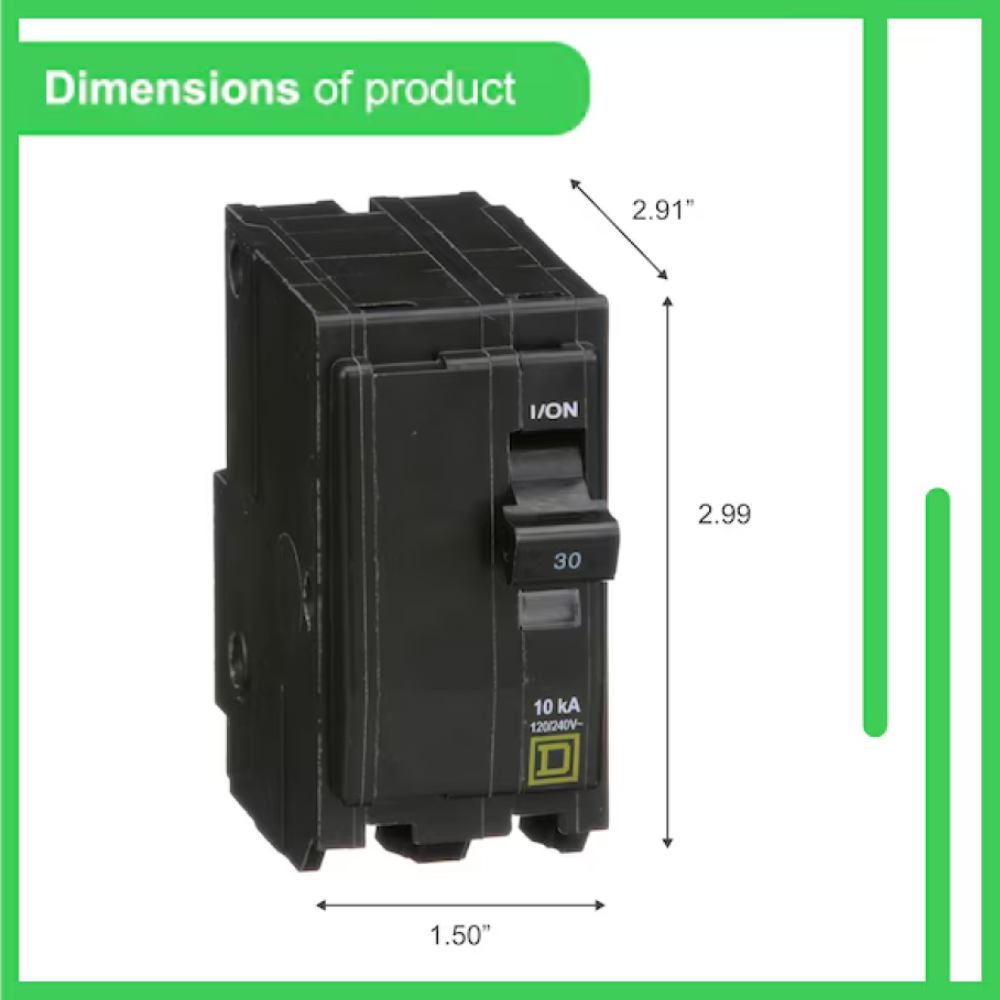

- Space Required: 2 Spaces (1.5 inches total)
Compatibility & Application
- Fits: Square D QO panels only.
- Does Not Fit: Square D Homeline (HOM) panels.
Certifications
- UL Listed
- CSA Certified
- HACR Rated
