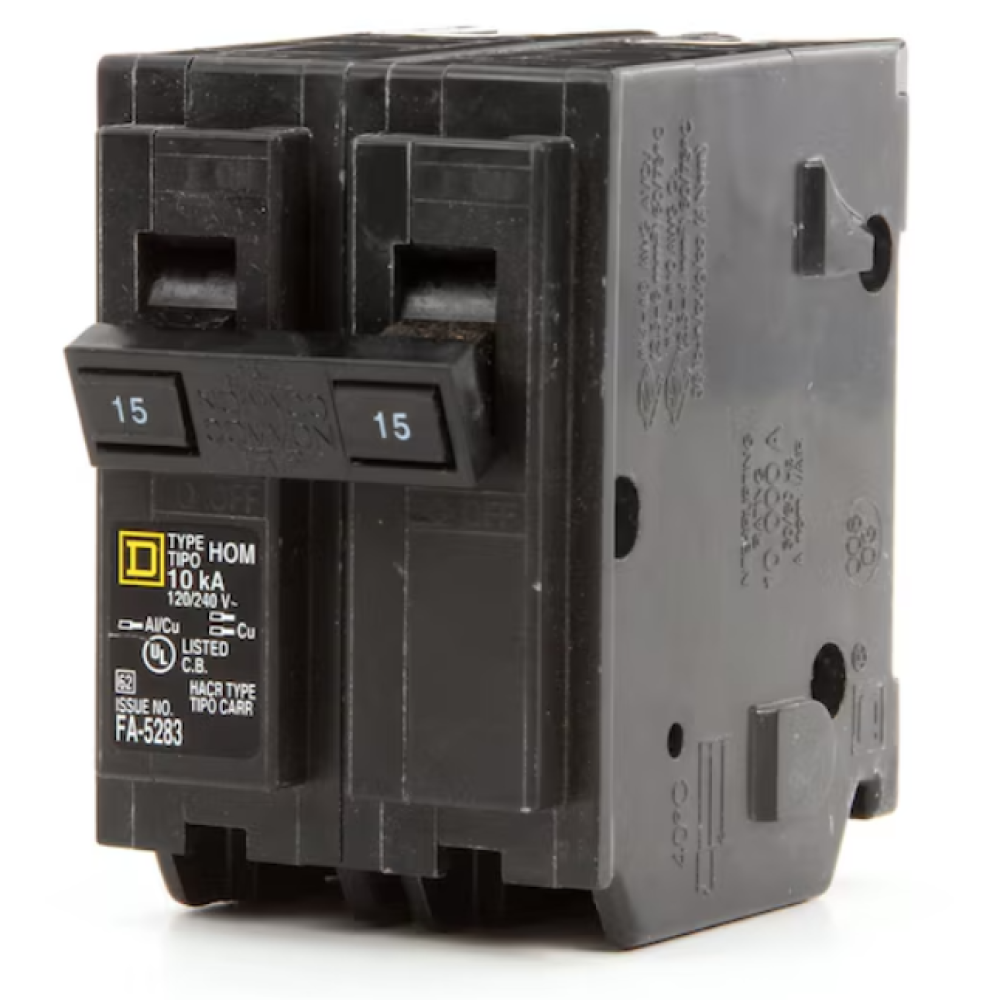

Square D Homeline 15 Amp Circuit Breaker - 2-Pole (HOM215)

Product Overview

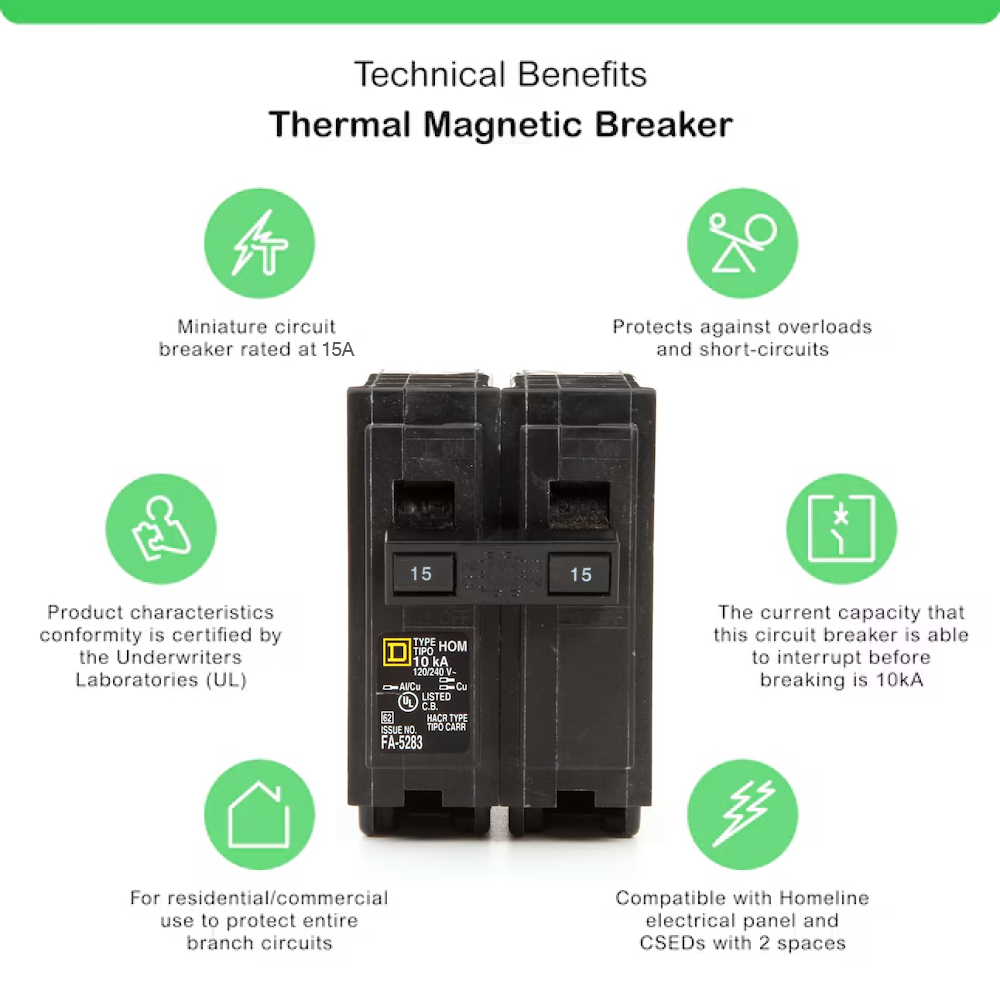

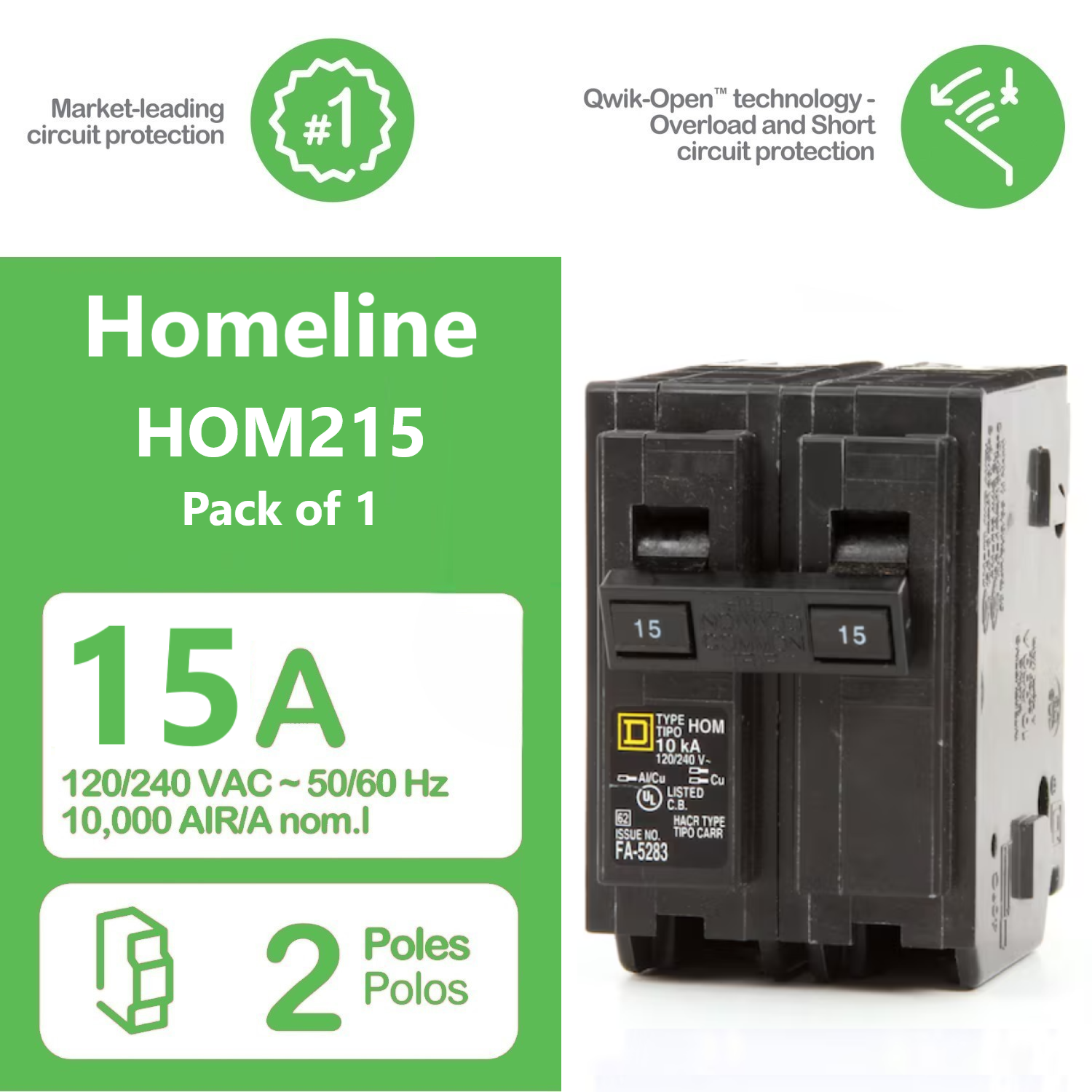

The Square D Homeline 15 Amp Circuit Breaker (HOM215) is a thermal-magnetic, 2-pole breaker designed for residential overload and short-circuit protection. As a genuine Square D component, it is engineered for a direct plug-on connection in Homeline load centers. This breaker is rated for 120/240V AC and provides a 10,000 AIR (10 kAIC) interrupting rating.

Technical Specifications

• Brand: Square D (by Schneider Electric)
• Series: Homeline (HOM)
• Model: HOM215
• Amperage: 15 Amps
• Poles: 2-Pole
• Voltage: 120/240V AC
• Connection: Plug-On
• Wire Size: Accepts #14–8 AWG (Al/Cu)
• Space Required: 2 Spaces

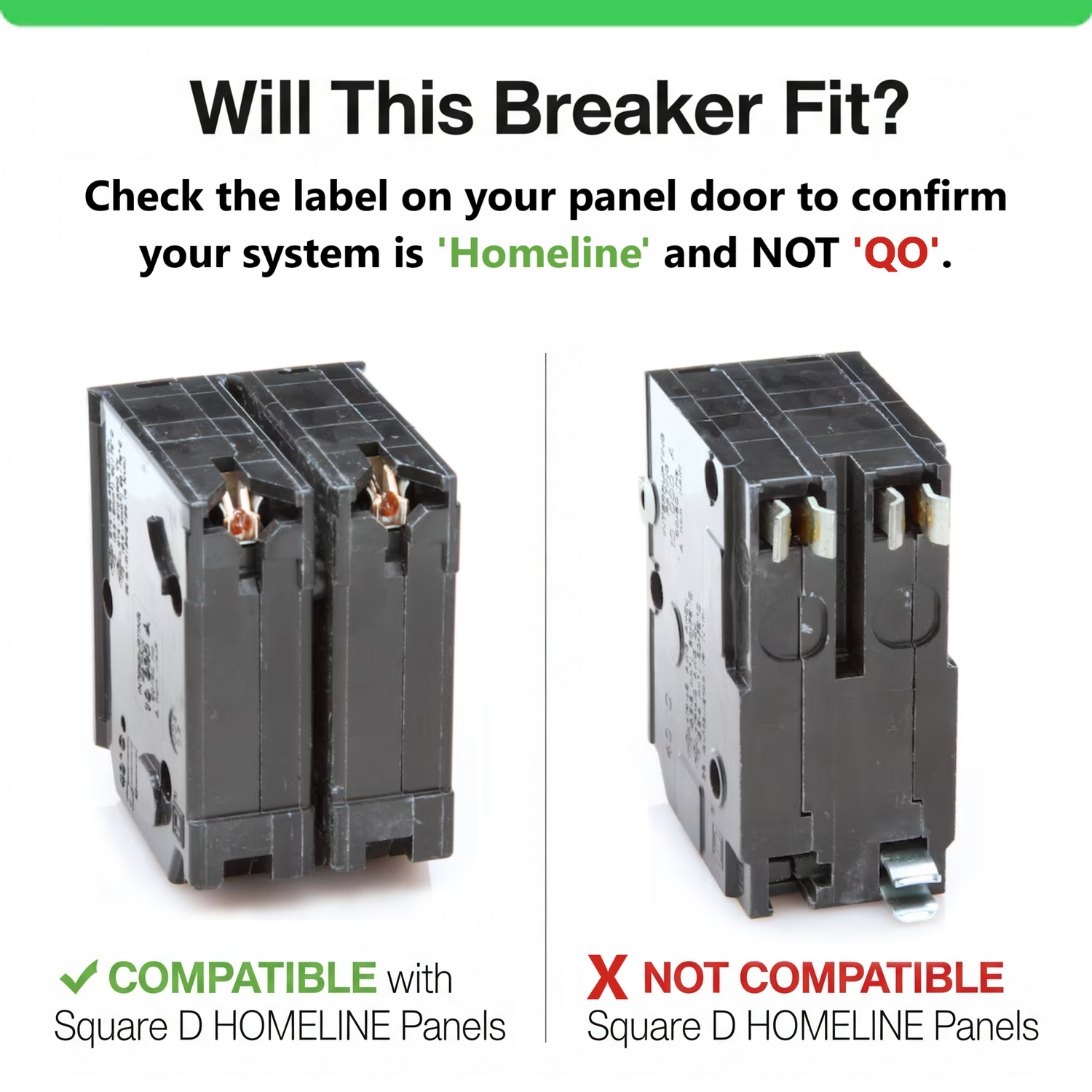

Compatibility & Application

• Fits: Square D Homeline (HOM) panels and CSED devices.
• Does Not Fit: Square D QO, Trilliant, or Slate panels. Not interchangeable with other brands (e.g., Eaton, Siemens).

Certifications

• UL Listed
• CSA Certified
• HACR Rated (Heating, Air Conditioning, and Refrigeration)
