Square D Homeline 100 Amp Circuit Breaker - 2-Pole (HOM2100)
Product Overview

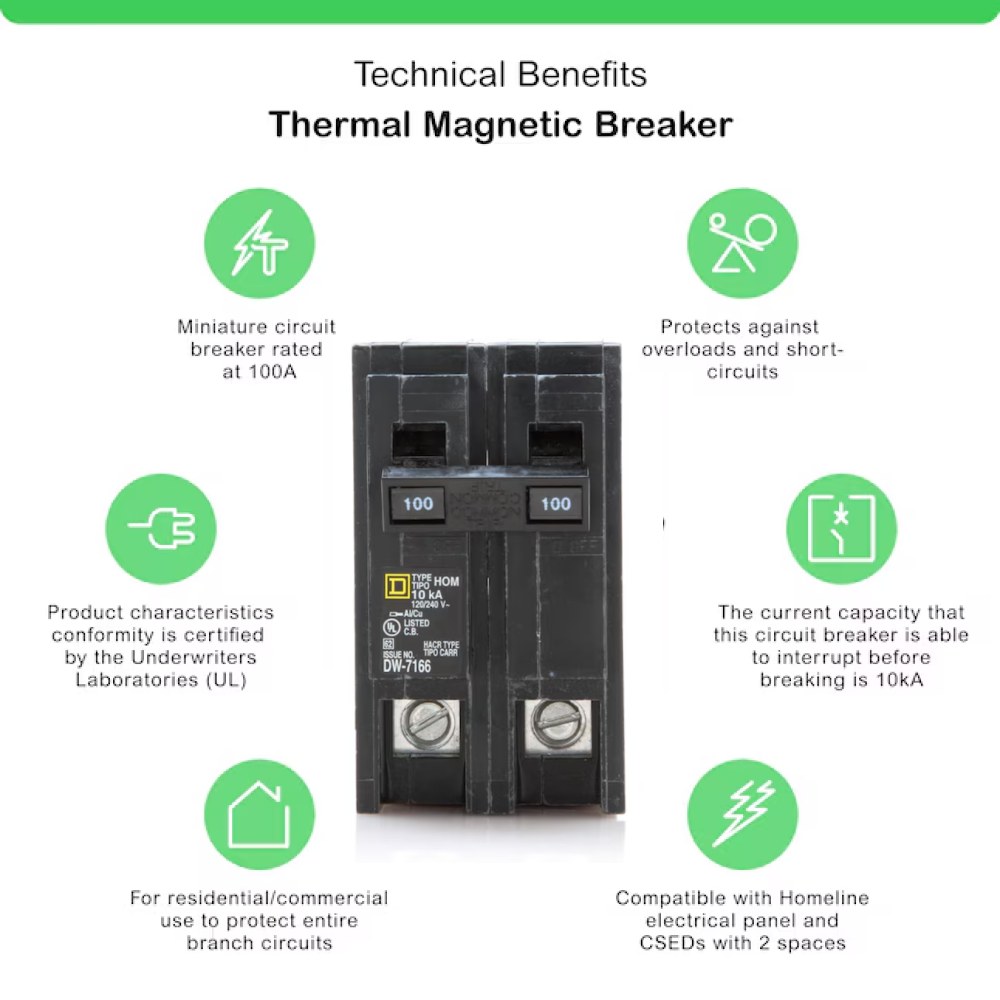

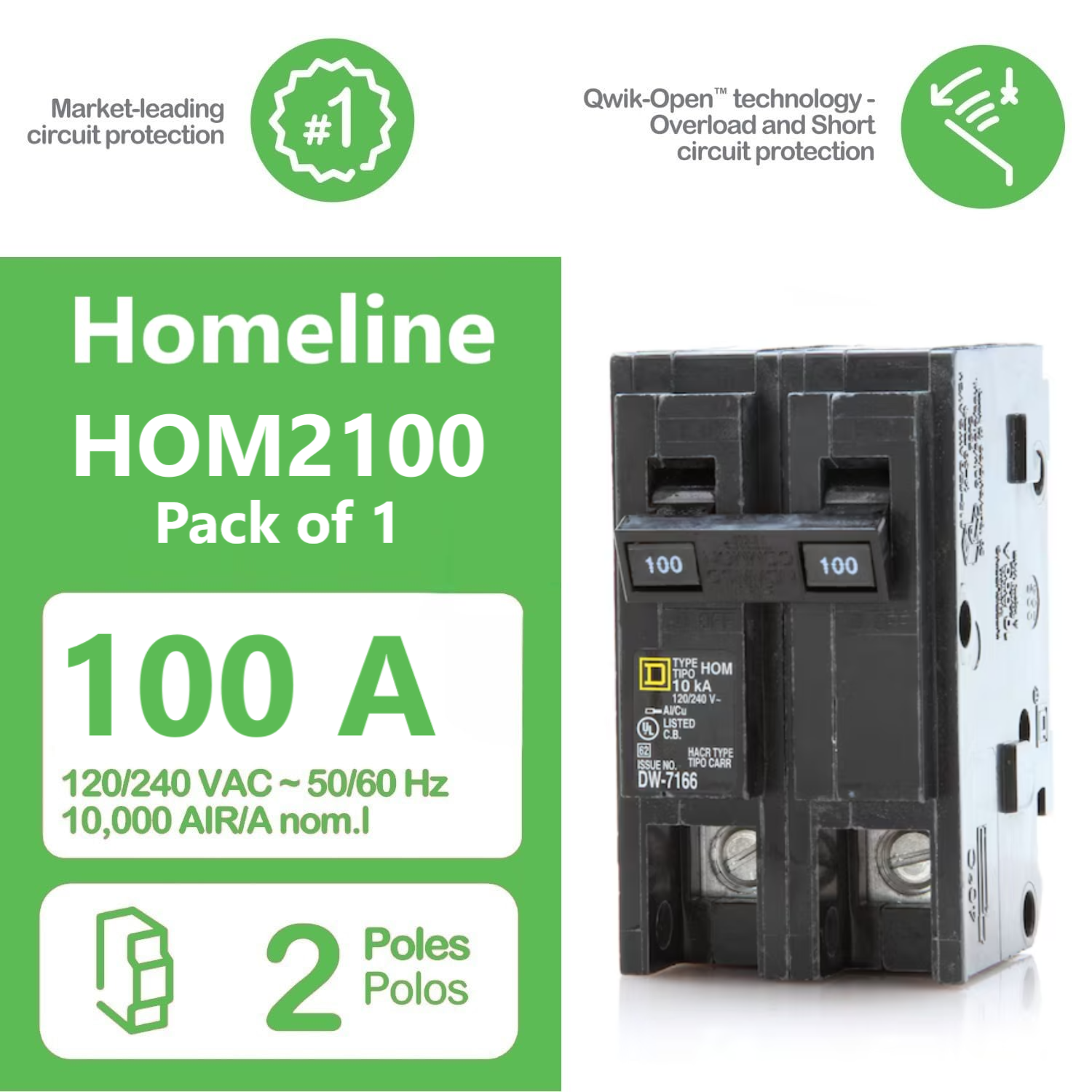

The Square D Homeline 100 Amp Circuit Breaker (HOM2100) is a thermal-magnetic, 2-pole breaker designed for residential overload and short-circuit protection. As a genuine Square D component, it is engineered for a direct plug-on connection in Homeline load centers. This breaker is rated for 120/240V AC and provides a 10,000 AIR (10 kAIC) interrupting rating.
Technical Specifications
- Brand: Square D (by Schneider Electric)
- Series: Homeline (HOM)
- Model: HOM2100
- Amperage: 100 Amps
- Poles: 2-Pole
- Voltage: 120/240V AC
- Connection: Plug-On
- Wire Size: Accepts #4–2/0 AWG (Al/Cu)
- Space Required: 2 Spaces
Compatibility & Application
- Fits: Square D Homeline (HOM) panels and CSED devices.
- Does Not Fit: Square D QO, Trilliant, or Slate panels. Not interchangeable with other brands.
Certifications
- UL Listed
- CSA Certified
- HACR Rated (Heating, Air Conditioning, and Refrigeration)
