Square D Homeline 40 Amp Circuit Breaker - 1-Pole (HOM140)
Square D Homeline 40 Amp Circuit Breaker - 1-Pole (HOM140) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Get same-day shipping on in-stock items if you place your order by 1pm ET. Transit time is 2-6 days. See our Shipping Policy to see how quickly your package will arrive.
Square D Homeline 40 Amp Circuit Breaker - 1-Pole (HOM140)
Product Overview

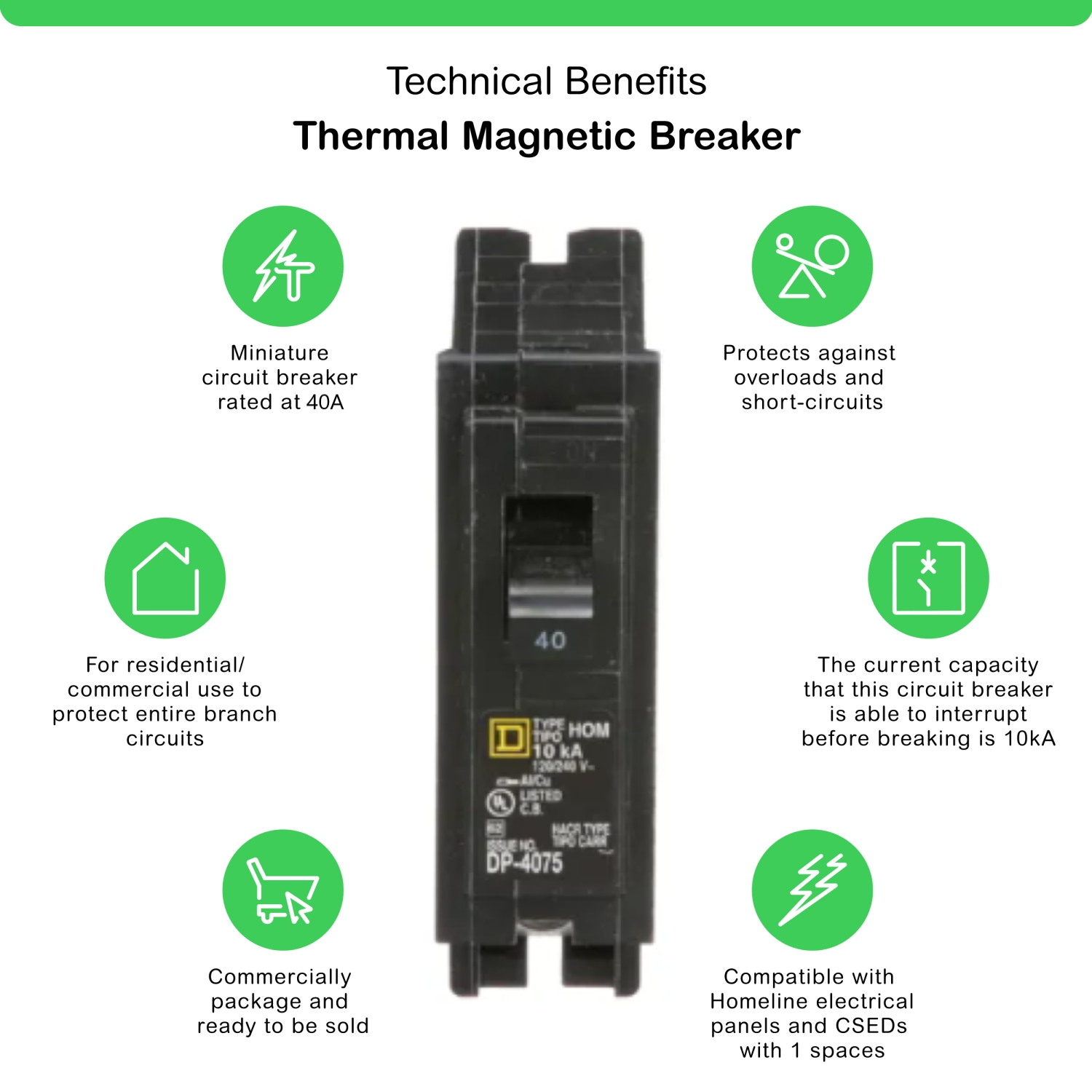

The Square D Homeline 40 Amp Circuit Breaker (HOM140) is a thermal-magnetic, 1-pole breaker designed for residential overload and short-circuit protection. As a genuine Square D component, it is engineered for a direct plug-on connection in Homeline load centers. This breaker is rated for 120/240V AC and provides a 10,000 AIR (10 kAIC) interrupting rating.

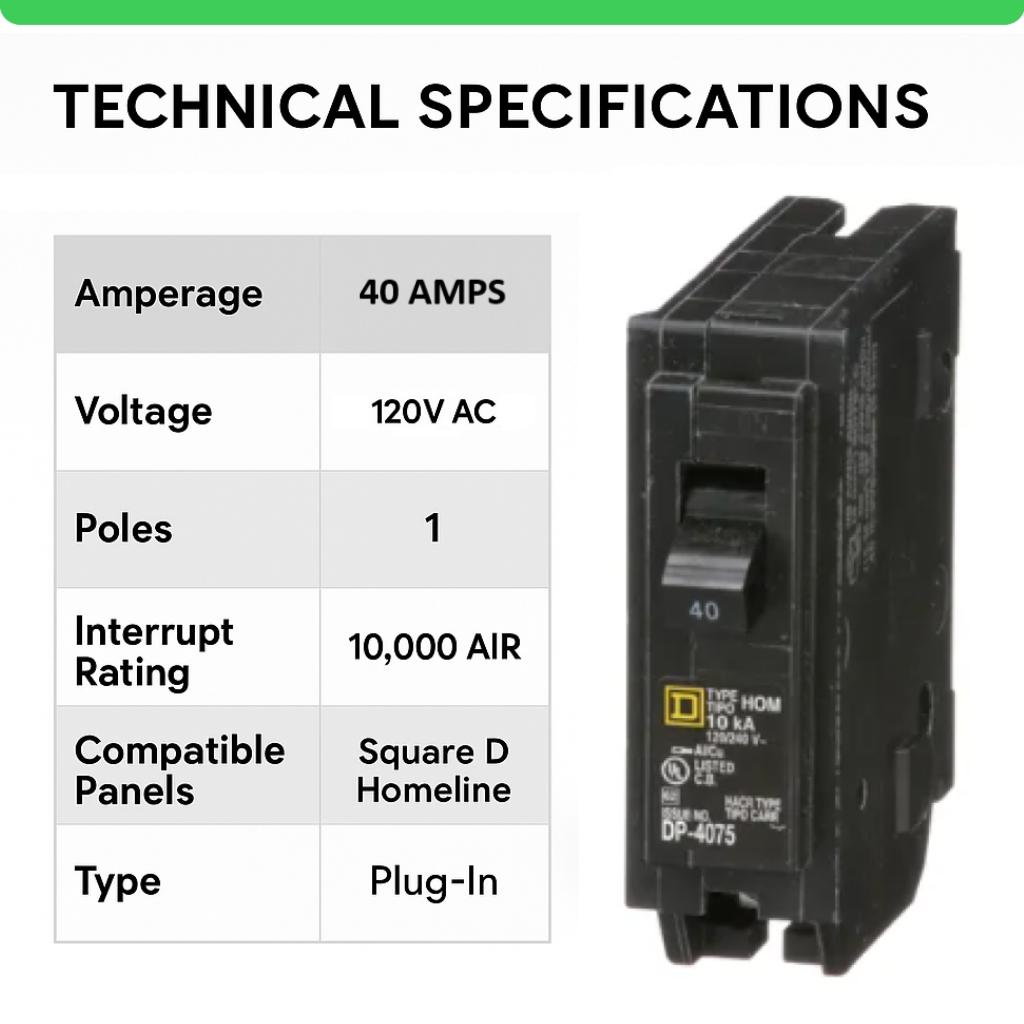

Technical Specifications
- Brand: Square D (by Schneider Electric)
- Series: Homeline (HOM)
- Model: HOM140
- Amperage: 40 Amps
- Poles: 1-Pole
- Voltage: 120/240V AC
- Connection: Plug-On
- Wire Size: Accepts #8–2 AWG (Al/Cu)
- Space Required: 1 Space

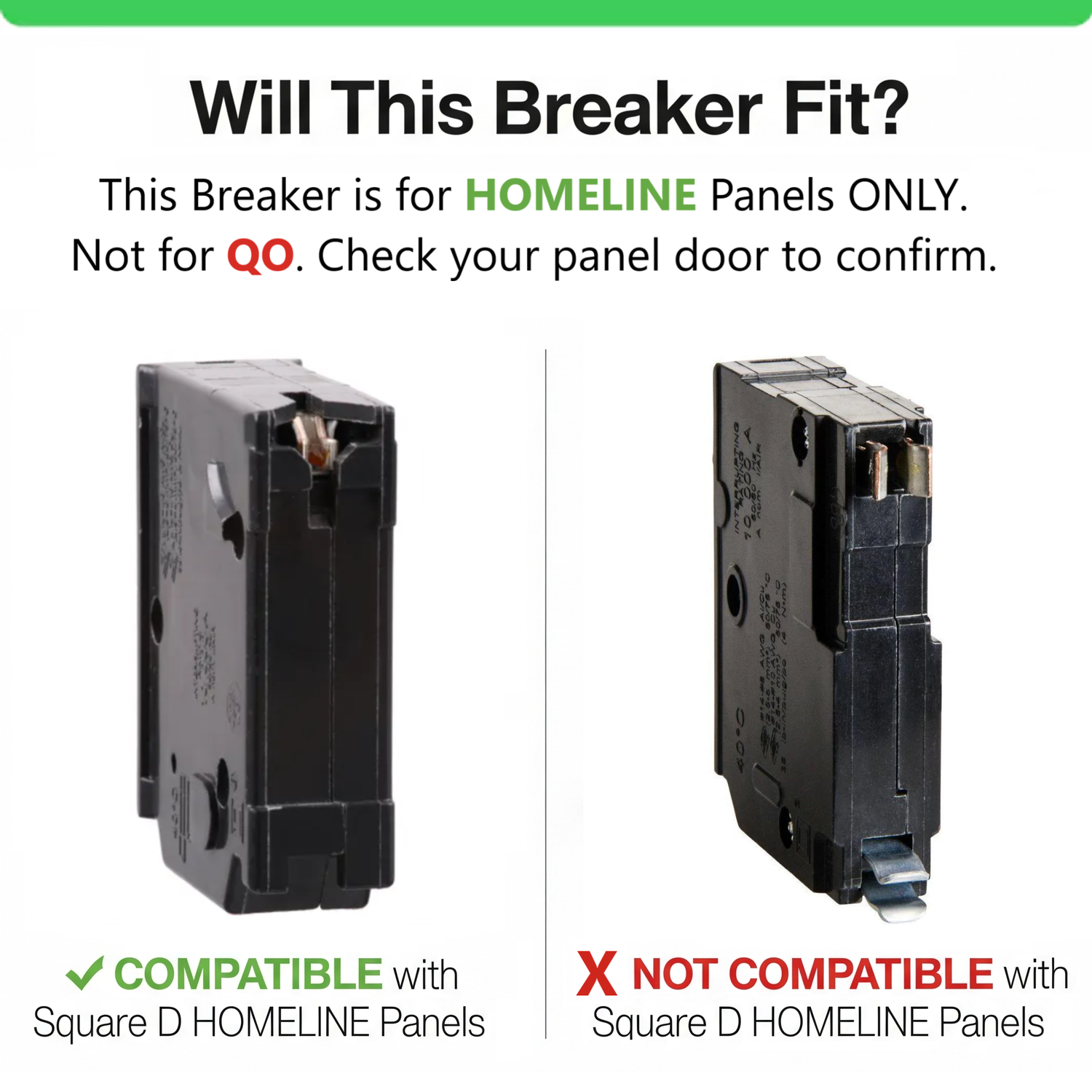

Compatibility & Application
- Fits: Square D Homeline (HOM) panels and CSED devices.
- Does Not Fit: Square D QO, Trilliant, or Slate panels. Not interchangeable with other brands.
Certifications
- UL Listed
- CSA Certified
- HACR Rated (Heating, Air Conditioning, and Refrigeration)
