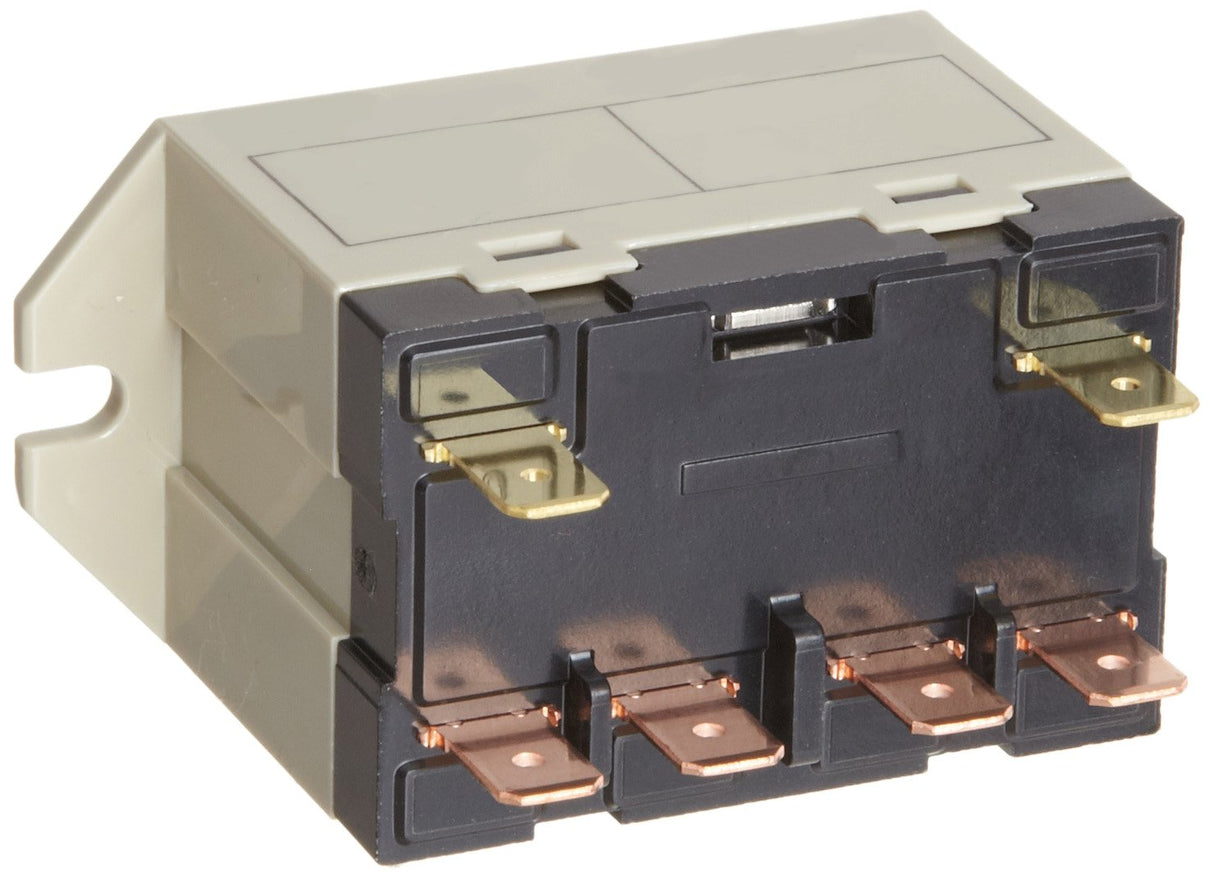

Omron G7L-2A-TUB-CB-AC100/120 General Purpose Relay, Class B Insulation, QuickConnect Terminal
Omron G7L-2A-TUB-CB-AC100/120 General Purpose Relay, Class B Insulation, QuickConnect Terminal is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
2 Year Warranty Guaranteed
2 Year Warranty Guaranteed
All new products sold by FalconSupply include a 90-day return policy and a 2-year full warranty. This ensures your purchase is guaranteed to be free from defects for a full 2 years from the date of shipment. If a product fails under normal use, we will provide a free prepaid return shipping label.
Delivery and Shipping
Delivery and Shipping
- Free Shipping on all orders over $50.
- Same-Day Shipping on orders placed before 1pm ET.
- Fast Transit: Estimated delivery within 1-6 business days.
Omron G7L-2A-TUB-CB-AC100/120 General Purpose Relay, Class B Insula...
Omron G7L-2A-TUB-CB-AC100/120 General Purpose Relay, Class B Insulation, QuickConnect Terminal, Upper Bracket Mounting, Double Pole Single Throw Normally Open Contacts, 17 to 20.4 mA Rated Load Current, 100 to 120 VAC Rated Load Voltage
Description:
The G7L2ATUBCBAC100120 is high-capacity, high-dielectric-strength relay compatible with momentary voltage drops. 0.25 inch quick-connect terminals and upper bracket mounting. UL Class B construction standard. Operating temperature range is from -25°C to 60°C.
Product Specifications:
| Manufacturer | Omron Electronic Components |
|---|---|
| Manufacturers Part # | G7L-2A-TUB-CB-AC100/120 |
| Series | G7L |
| Lead Time | 39 Week Lead Time |
| Industry Alias | 653-G7L-2AT-AC1, G7L-2A-TUB-CB-AC100/120, G7L2ATUBCBAC100120 |
| Sub-Category | General Purpose Relays |
| Factory Pack Quantity | 20 |
| Selling Alternatives | G7L-2A-TUB-CB-AC100/120 |
| Height | 47 mm |
| Length | 50.5 mm |
| Width | 33.5 mm |
| Type | Miniature |
| Mounting Style | Panel Mount |
| Contact Form | DPST (2 Form A) |
| Contact Material | Silver Alloy (Ag) |
| Product | Power Relays |
| Coil Type | Non-Latching |
| Coil Voltage | 100 VAC to 120 VAC |
| Contact Termination | Quick Connect |
| Power Consumption | 2.5 W |
| Coil Current | 20.1 mA |
| Relay Contact Form | 2 Form A (DPST-NO) |
| Switching Voltage | 250 VAC |
| Coil Termination | Quick Connect |
| Contact Current Rating | 25 A |
