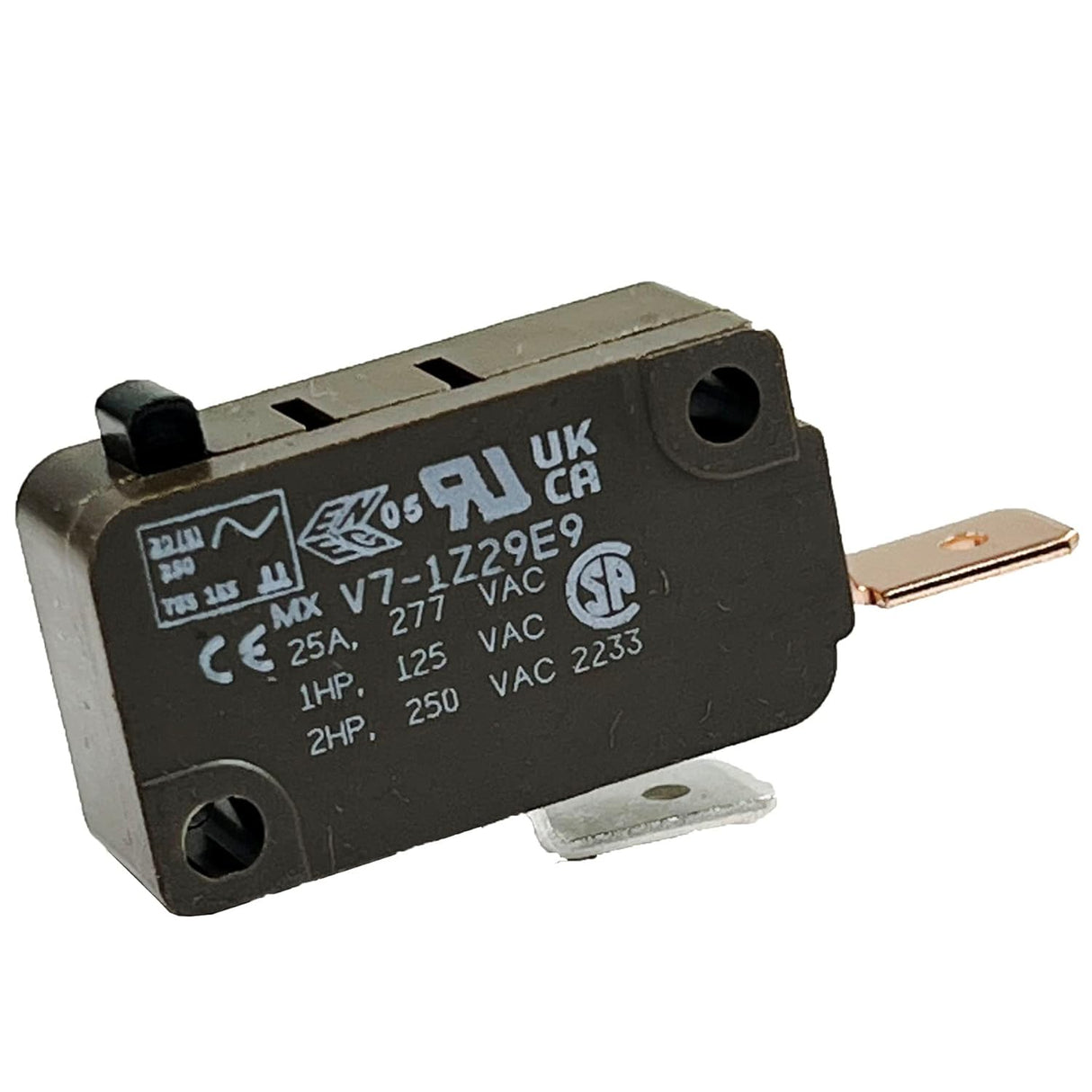

Honeywell V7-1Z29E9 Basic Switch SPST NO Pin Plunger Miniature, V7 Series

Name: Honeywell V7-1Z29E9 Basic Switch SPST NO Pin Plunger Miniature, V7 Series
Brand: Honeywell
SKU: V7-1Z29E9
Price: 14.99 USD
Availability: InStock

$14.99

2 Year Warranty Guaranteed

All new products sold by FalconSupply include a 90-day return policy and a 2-year full warranty. This ensures your purchase is guaranteed to be free from defects for a full 2 years from the date of shipment. If a product fails under normal use, we will provide a free prepaid return shipping label.

Delivery and Shipping

Free Shipping on all orders over $50.
Same-Day Shipping on orders placed before 1pm ET.
Fast Transit: Estimated delivery within 1-6 business days.

Honeywell’s MICRO SWITCH V7 miniature switches are designed for long-term reliability, featuring a rugged switch packaged with a thermoplastic housing. These switches can be installed in a wide range of applications from simple or precision on/off limits, to presence/absence sensing, or embedded in pressure or temperature assemblies. The V7 switch is available as a pin plunger style or with optional integral or auxiliary levers to actuate the switch and offer versatility in applications. The switch requires as little as 0.15 Newtons (approximately 0.5 ounces) to operate for extremely sensitive applications, or as much as almost 4 Newtons (14 ounces) where higher forces are required. The V7 switch can reliably control logic level electrical loads from less than 0.1 A to power duty switching up to 25 A. Agency certifications for the MICRO SWITCH V7 switches are provided through CSA, ENEC, and UL for global use around the world.

Features

Certified with CSA, ENEC, and UL for Global Acceptability

Reliable Snap-Spring Mechanism with More Than 60 Years of Proven Service

Reliable Performance in Harsh Conditions

Actuation on Time

Product Specifications

Product Attribute Attribute Value

Actuator Type                      Pin Plunger
Body Style                            Miniature
Casing Material                   Thermoplastic
Contact Form                       SPST
Contact Material                 Gold Alloy&frasl;Silver Alloy&frasl;Silver
Current Rating                    25 A
Operating Temp.                -40 to +85 °C
Series                                    V7 Series
Special Features                 High Temperature
Standards                             UL Recognized, CSA Certified, VDE Approved

Termination QC Tabs

Type Basic

Voltage Rating 250 V
