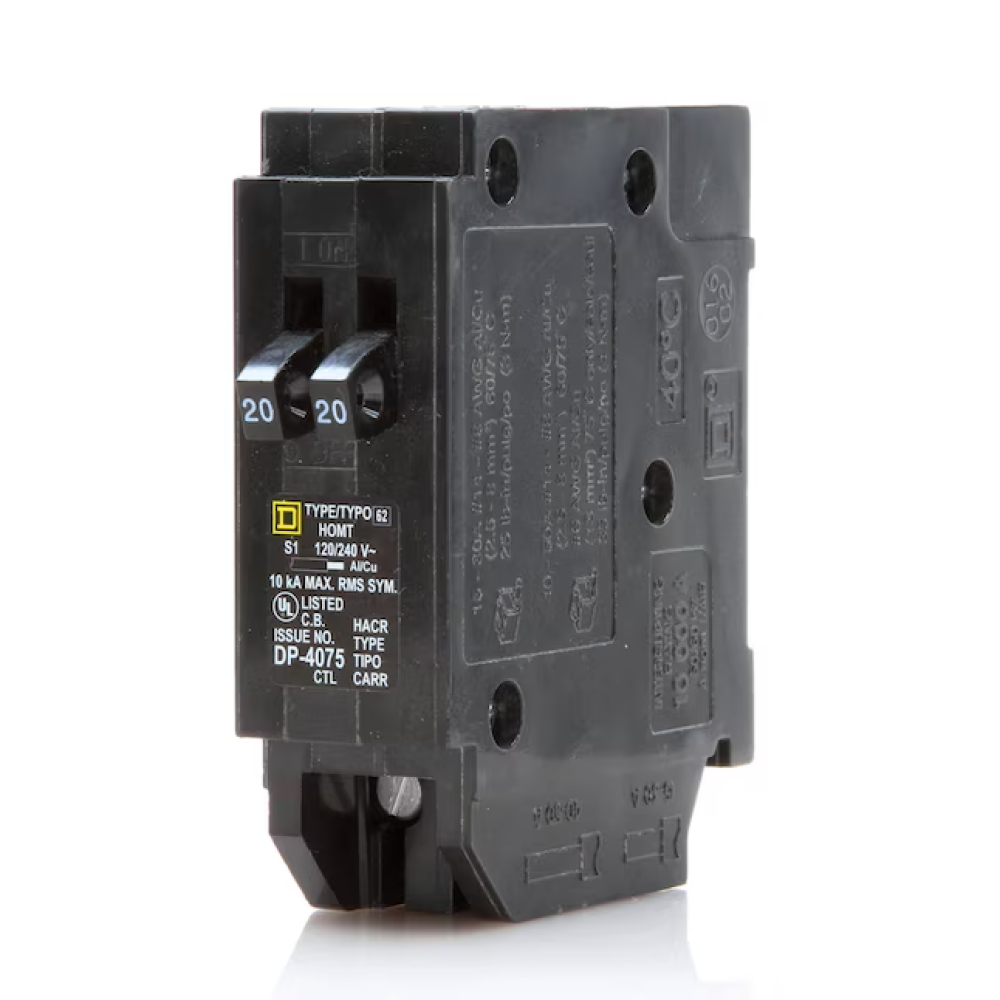

Square D Homeline Tandem 20/20 Amp Circuit Breaker - 1-Pole (HOMT2020)

Name: Square D Homeline Tandem 20/20 Amp Circuit Breaker - 1-Pole (HOMT2020)
Brand: SQUARE D
SKU: HOMT2020
Price: 16.99 USD
Availability: InStock

$16.99 ~~$24.99~~

2 Year Warranty Guaranteed

All new products sold by FalconSupply include a 90-day return policy and a 2-year full warranty. This ensures your purchase is guaranteed to be free from defects for a full 2 years from the date of shipment. If a product fails under normal use, we will provide a free prepaid return shipping label.

Delivery and Shipping

Free Shipping on all orders over $50.
Same-Day Shipping on orders placed before 1pm ET.
Fast Transit: Estimated delivery within 1-6 business days.

Product Overview

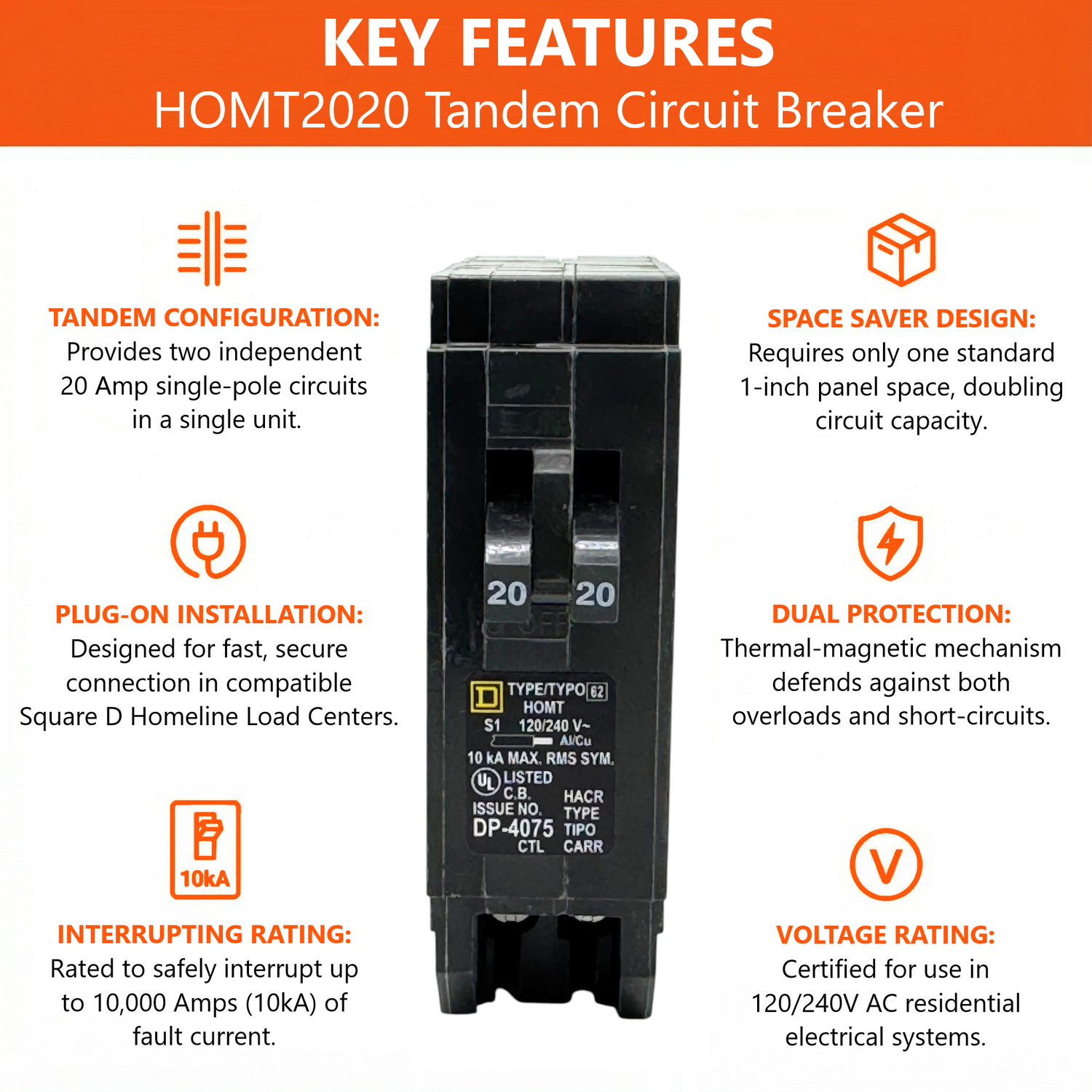

The Square D Homeline Tandem 20/20 Amp Circuit Breaker (HOMT2020) is a "space-saver" device that provides two independent single-pole 20 Amp circuits in the space of one standard 1-inch breaker.

Designed for Homeline load centers, this thermal-magnetic breaker is the ideal solution for kitchen and bathroom renovations where multiple 20A appliance circuits are needed but panel space is limited.

Common Applications: Adding two new kitchen appliance circuits, bathroom outlets, or general-purpose 20A circuits to a maxed-out panel.

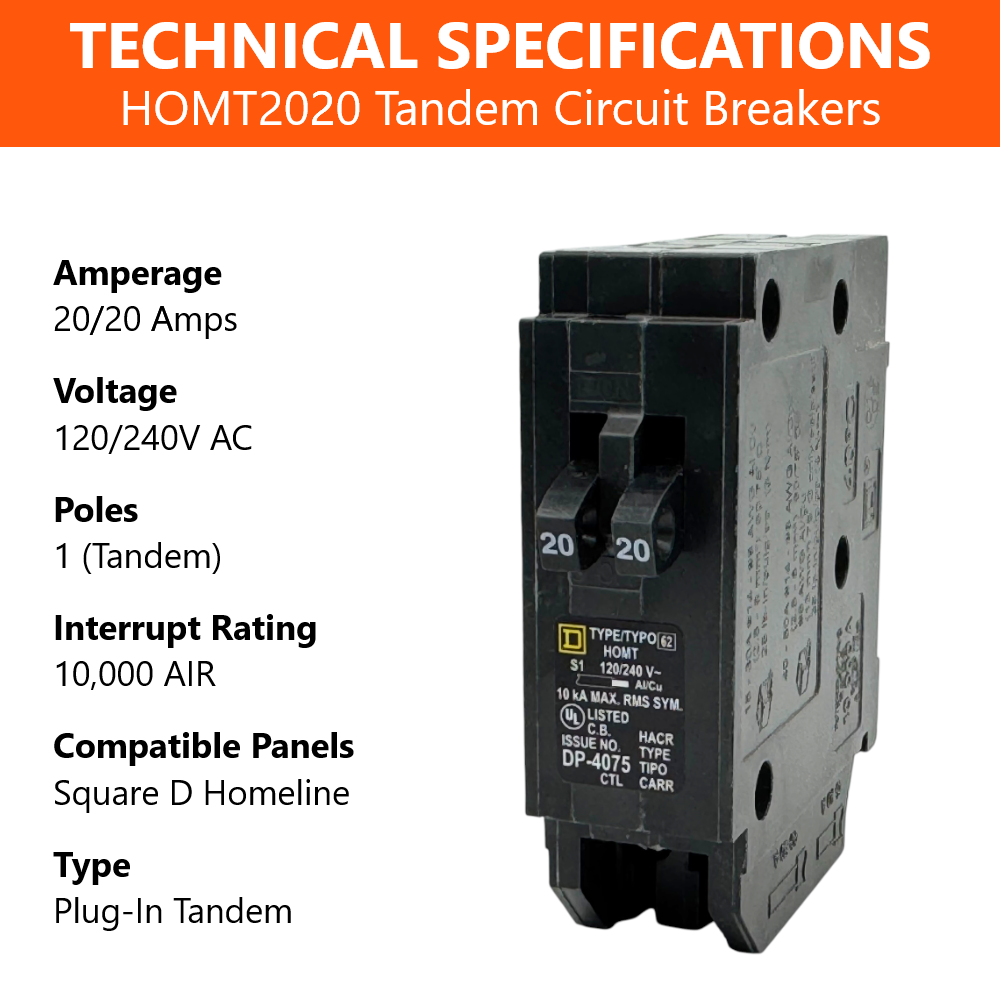

Technical Specifications

Brand: Square D (by Schneider Electric)
Series: Homeline (HOMT - Tandem)
Model: HOMT2020
Amperage: 20 Amp (Pole 1) / 20 Amp (Pole 2)
Poles: 1-Pole (Fits in 1 inch of space)
Voltage: 120/240V AC
Connection: Plug-On

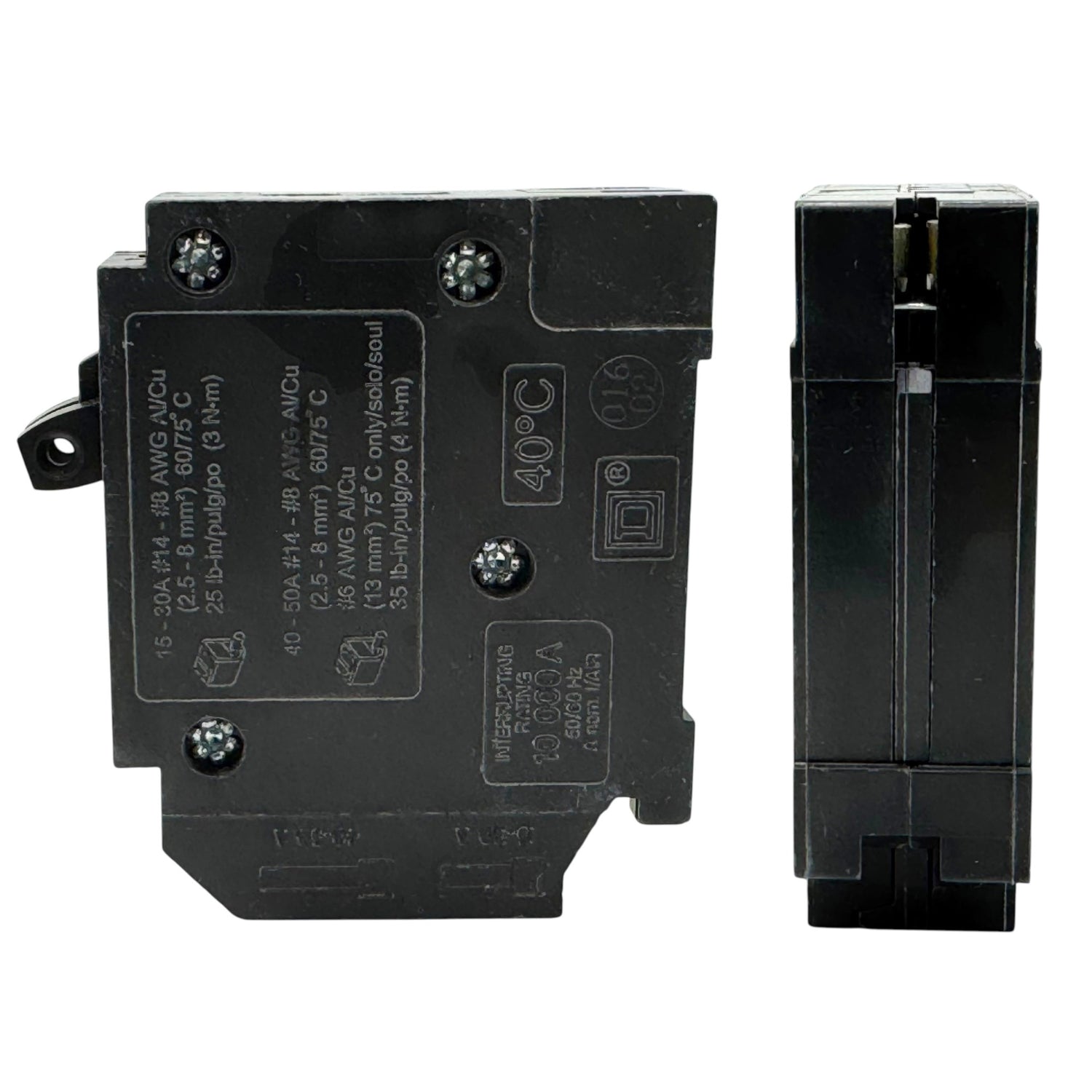

Wire Size: Accepts #14–8 AWG (Al/Cu)

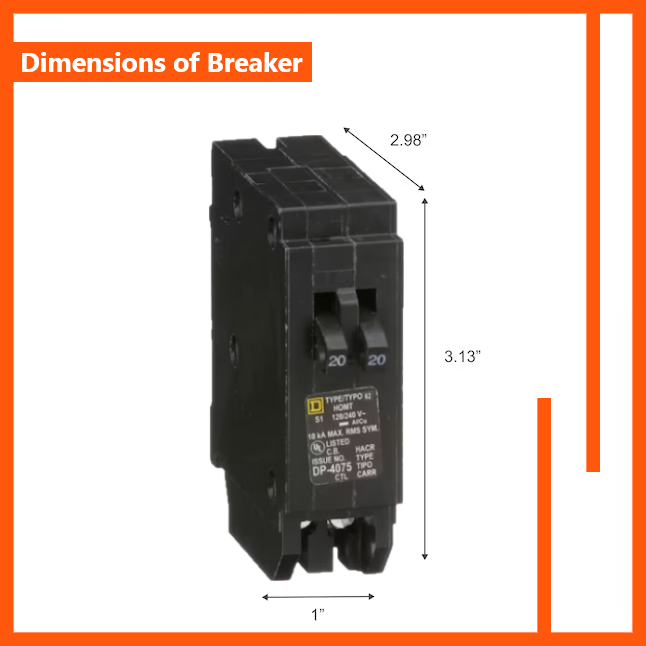

Space Required: 1 Space (1-inch width)

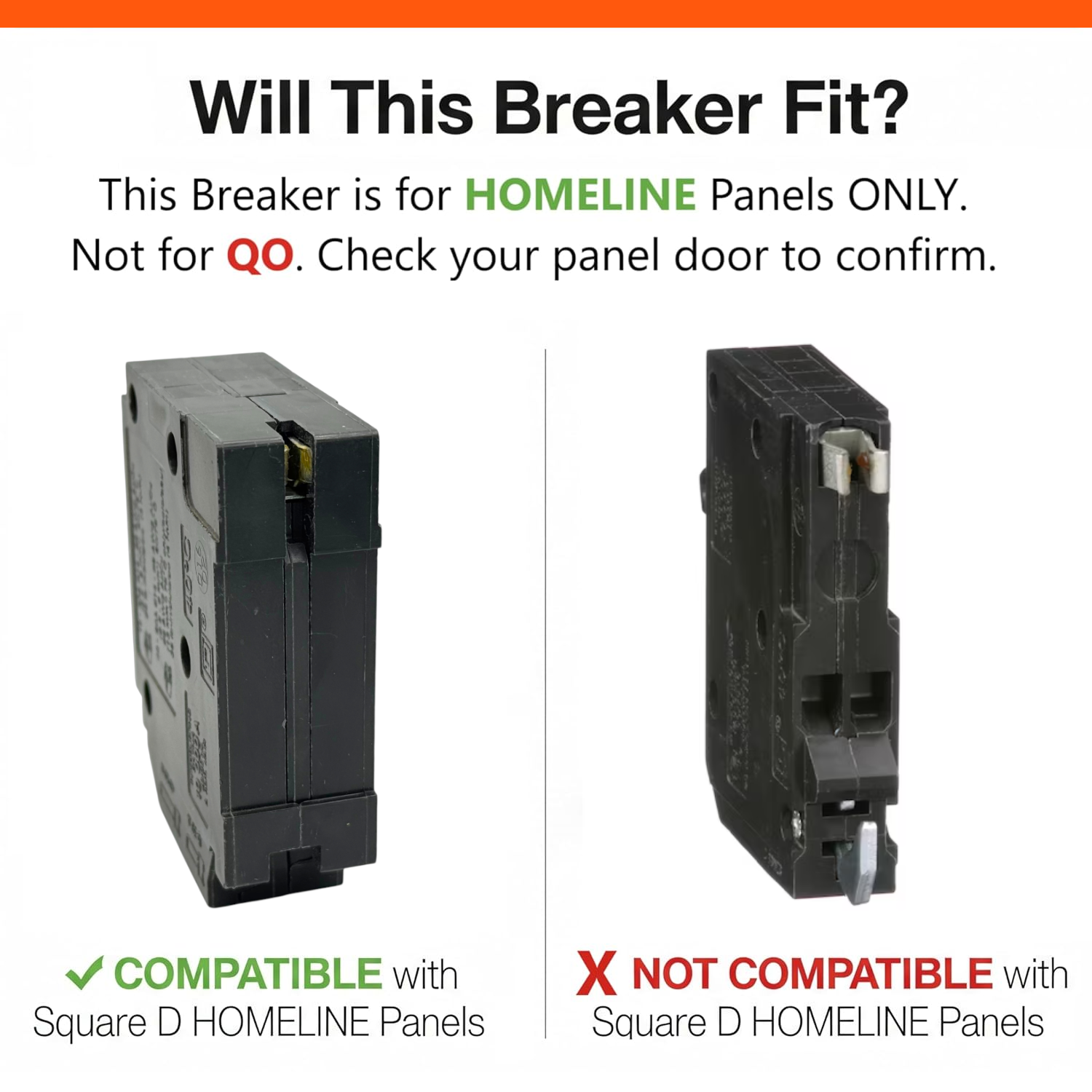

Compatibility & Application

Fits: Square D Homeline (HOM) panels designed for tandem breakers (Class CTL).
Does Not Fit: Square D QO panels or Homeline panels with "restrictive" bus fingers (Non-CTL slots).
