Square D Homeline Tandem 15/20 Amp Circuit Breaker - 1-Pole (HOMT1520)

Name: Square D Homeline Tandem 15/20 Amp Circuit Breaker - 1-Pole (HOMT1520)
Brand: SQUARE D
SKU: HOMT1520
Price: 15.99 USD
Availability: InStock

$15.99 ~~$24.99~~

2 Year Warranty Guaranteed

All new products sold by FalconSupply include a 90-day return policy and a 2-year full warranty. This ensures your purchase is guaranteed to be free from defects for a full 2 years from the date of shipment. If a product fails under normal use, we will provide a free prepaid return shipping label.

Delivery and Shipping

Free Shipping on all orders over $50.
Same-Day Shipping on orders placed before 1pm ET.
Fast Transit: Estimated delivery within 1-6 business days.

Product Overview

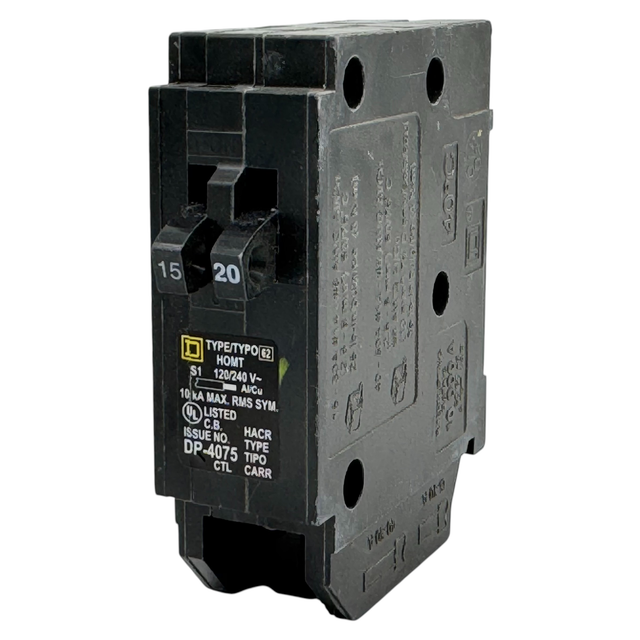

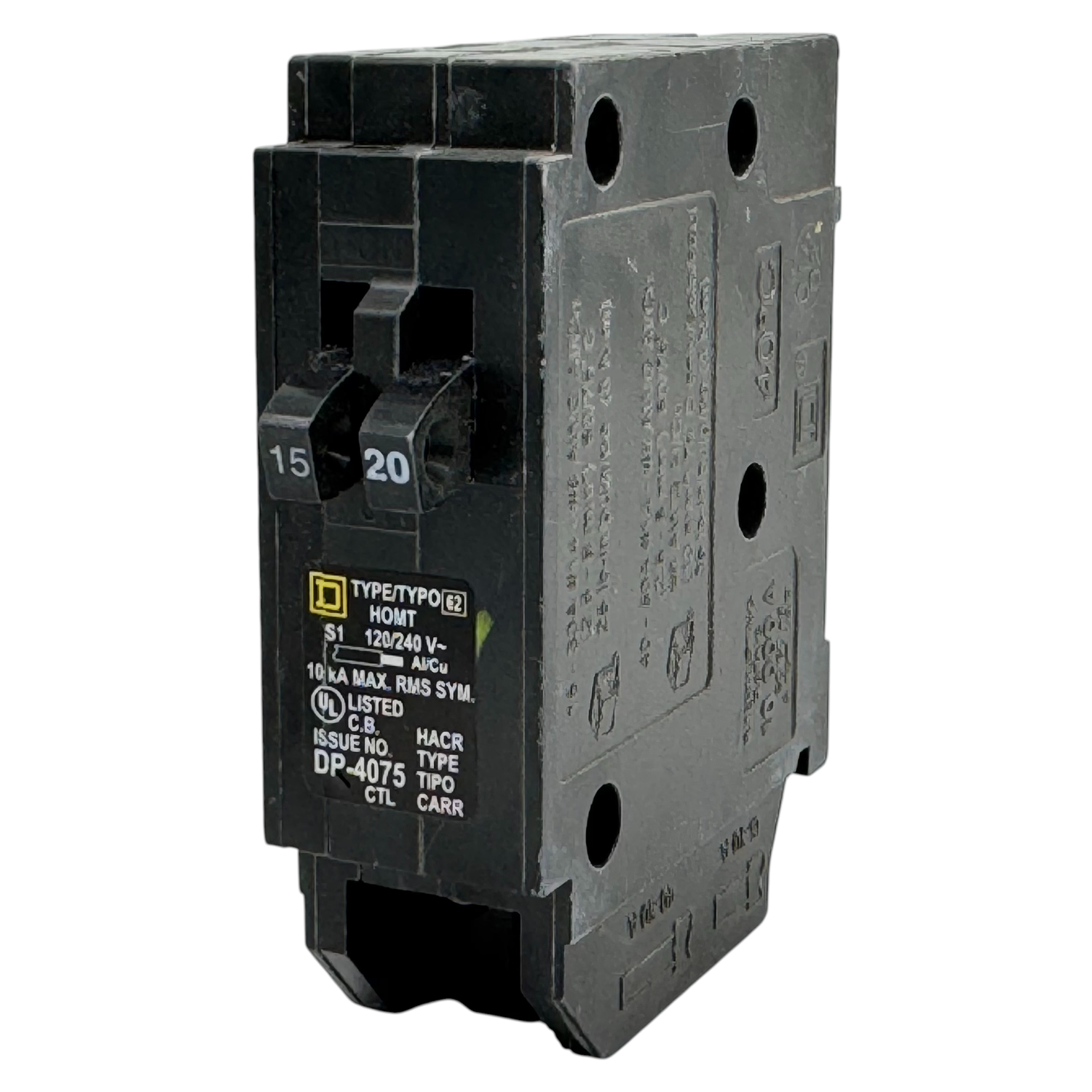

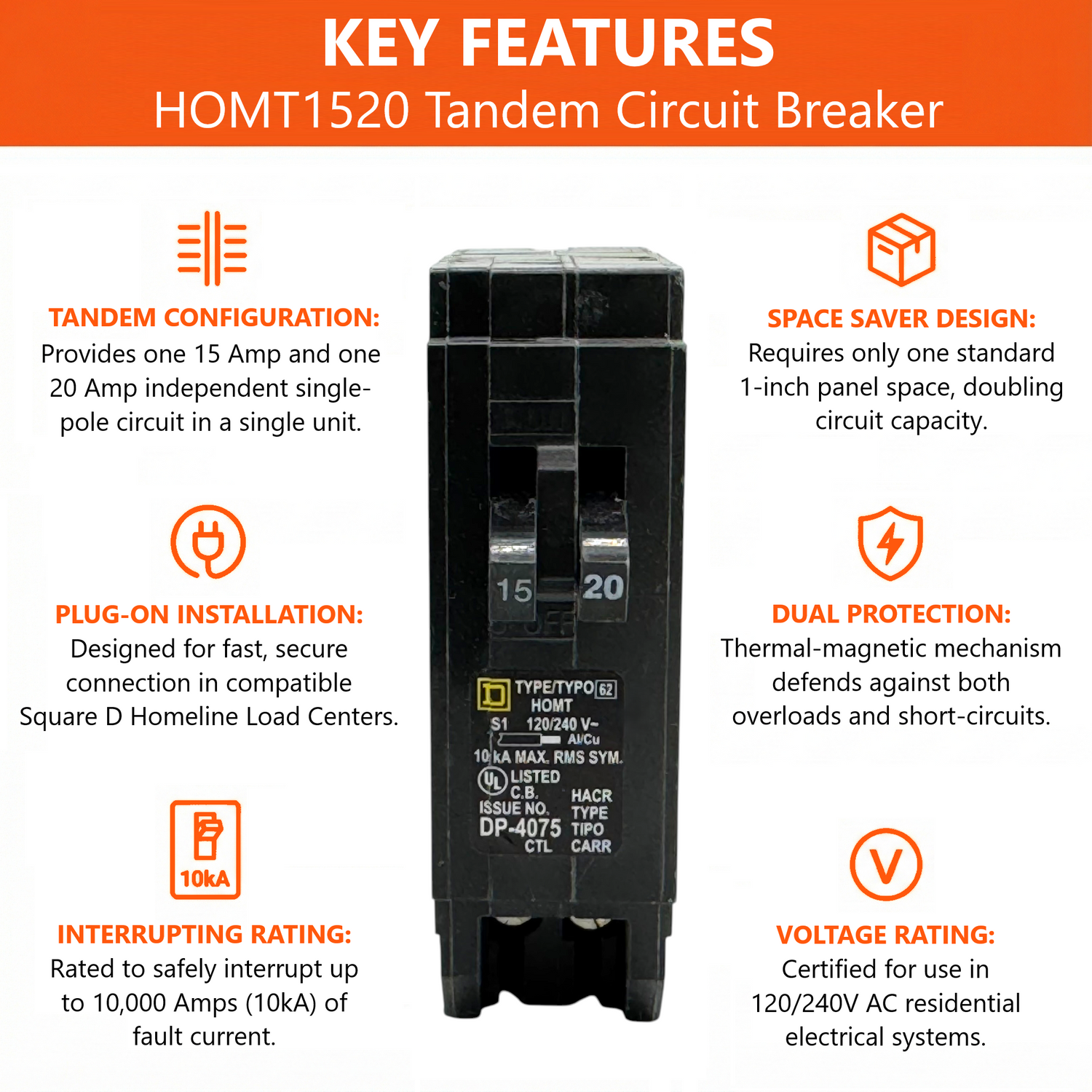

The Square D Homeline Tandem 15/20 Amp Circuit Breaker (HOMT1520) is a versatile "space-saver" device that provides two independent single-pole circuits—one 15 Amp and one 20 Amp—in the space of a single 1-inch breaker.

Designed for Homeline load centers, this thermal-magnetic breaker is the perfect solution for renovations requiring mixed circuits (e.g., lighting and outlets) when panel space is limited.

Common Applications: Adding a new 15A lighting circuit and a 20A general-purpose outlet circuit to a full panel.

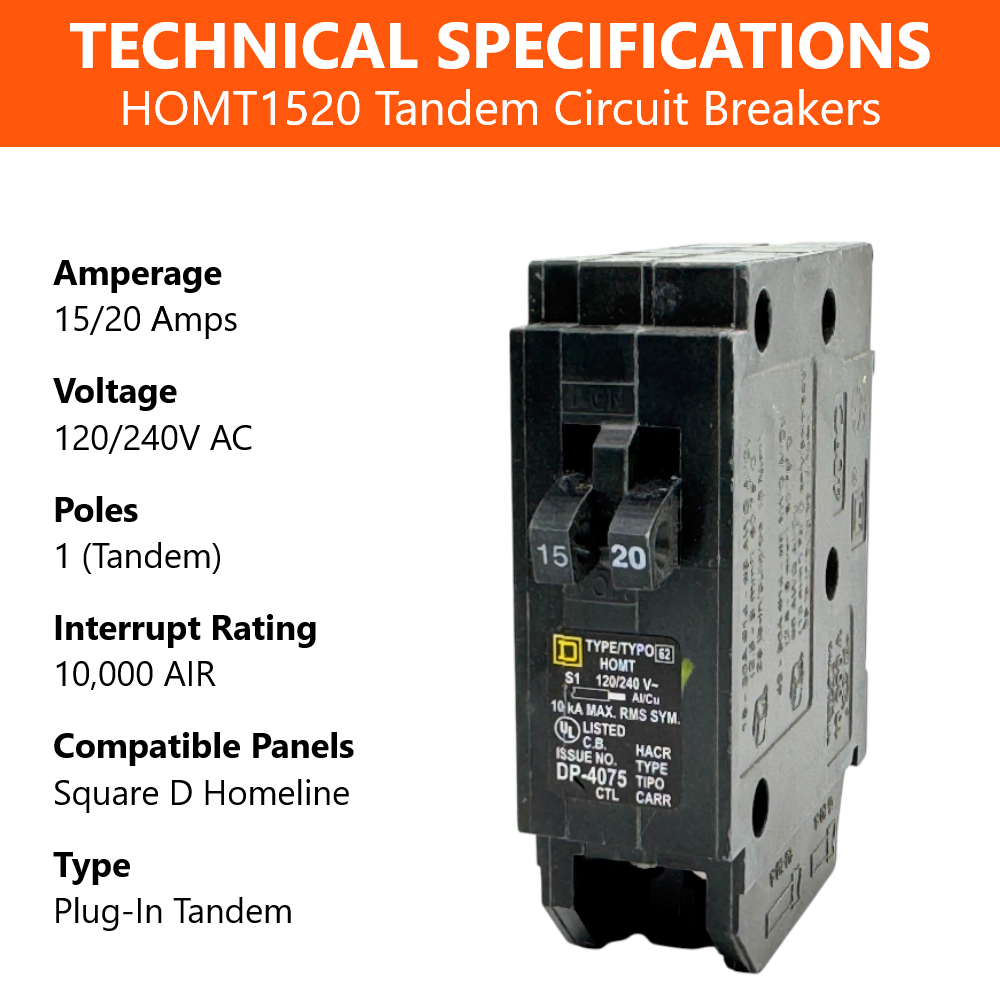

Technical Specifications

Brand: Square D (by Schneider Electric)
Series: Homeline (HOMT - Tandem)
Model: HOMT1520
Amperage: 15 Amp (Pole 1) / 20 Amp (Pole 2)
Poles: 1-Pole (Fits in 1 inch of space)
Voltage: 120/240V AC
Connection: Plug-On
Wire Size: Accepts #14–8 AWG (Al/Cu)
Space Required: 1 Space (1-inch width)

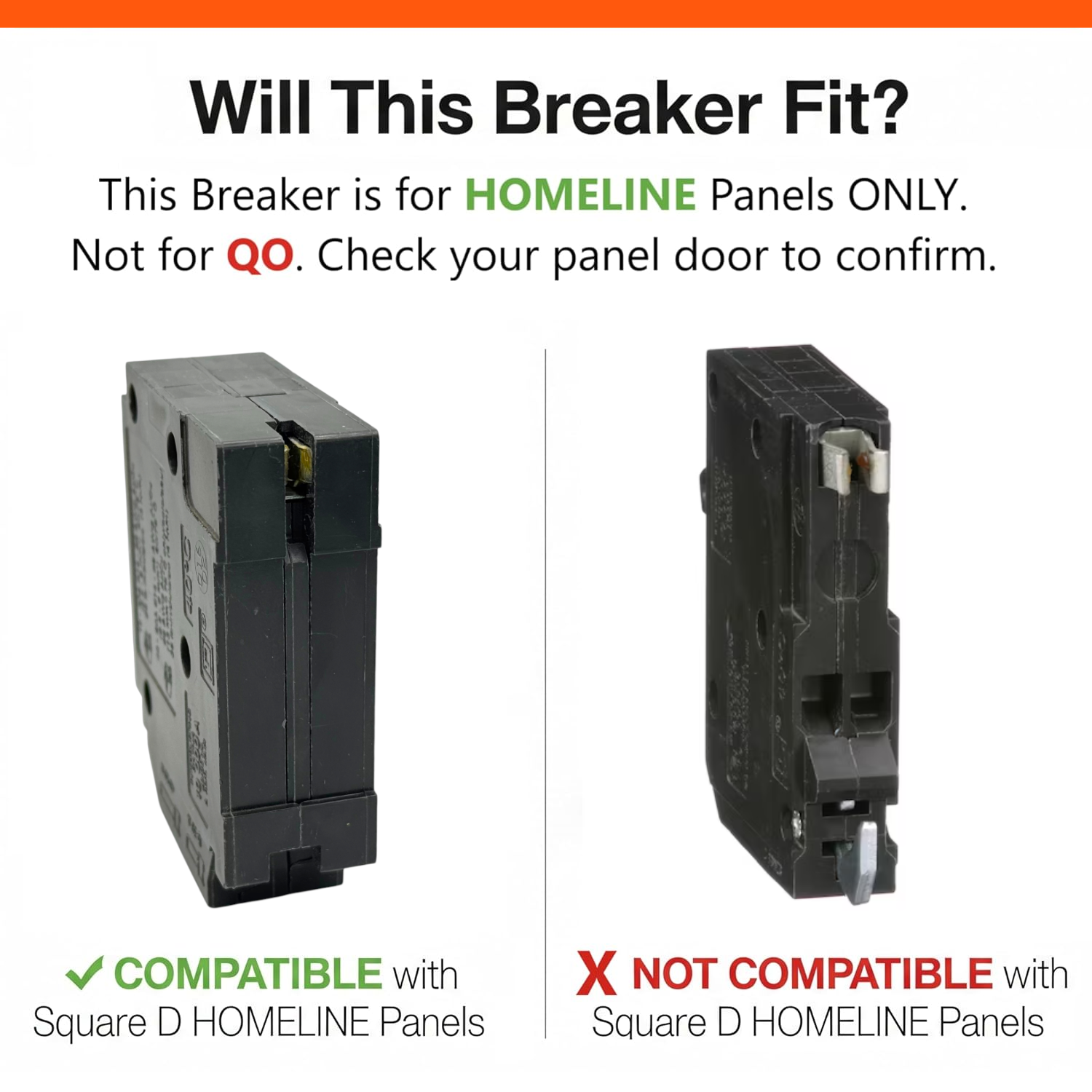

Compatibility & Application

Fits: Square D Homeline (HOM) panels designed for tandem breakers (Class CTL).
Does Not Fit: Square D QO panels or Homeline panels with "restrictive" bus fingers (Non-CTL slots).
