Square D Homeline Tandem 30/20 Amp Circuit Breaker - 1-Pole (HOMT3020)

Name: Square D Homeline Tandem 30/20 Amp Circuit Breaker - 1-Pole (HOMT3020)
Brand: SQUARE D
SKU: HOMT3020CP
Price: 16.99 USD
Availability: InStock

$16.99 ~~$29.00~~

2 Year Warranty Guaranteed

All new products sold by FalconSupply include a 90-day return policy and a 2-year full warranty. This ensures your purchase is guaranteed to be free from defects for a full 2 years from the date of shipment. If a product fails under normal use, we will provide a free prepaid return shipping label.

Delivery and Shipping

Free Shipping on all orders over $50.
Same-Day Shipping on orders placed before 1pm ET.
Fast Transit: Estimated delivery within 1-6 business days.

Product Overview

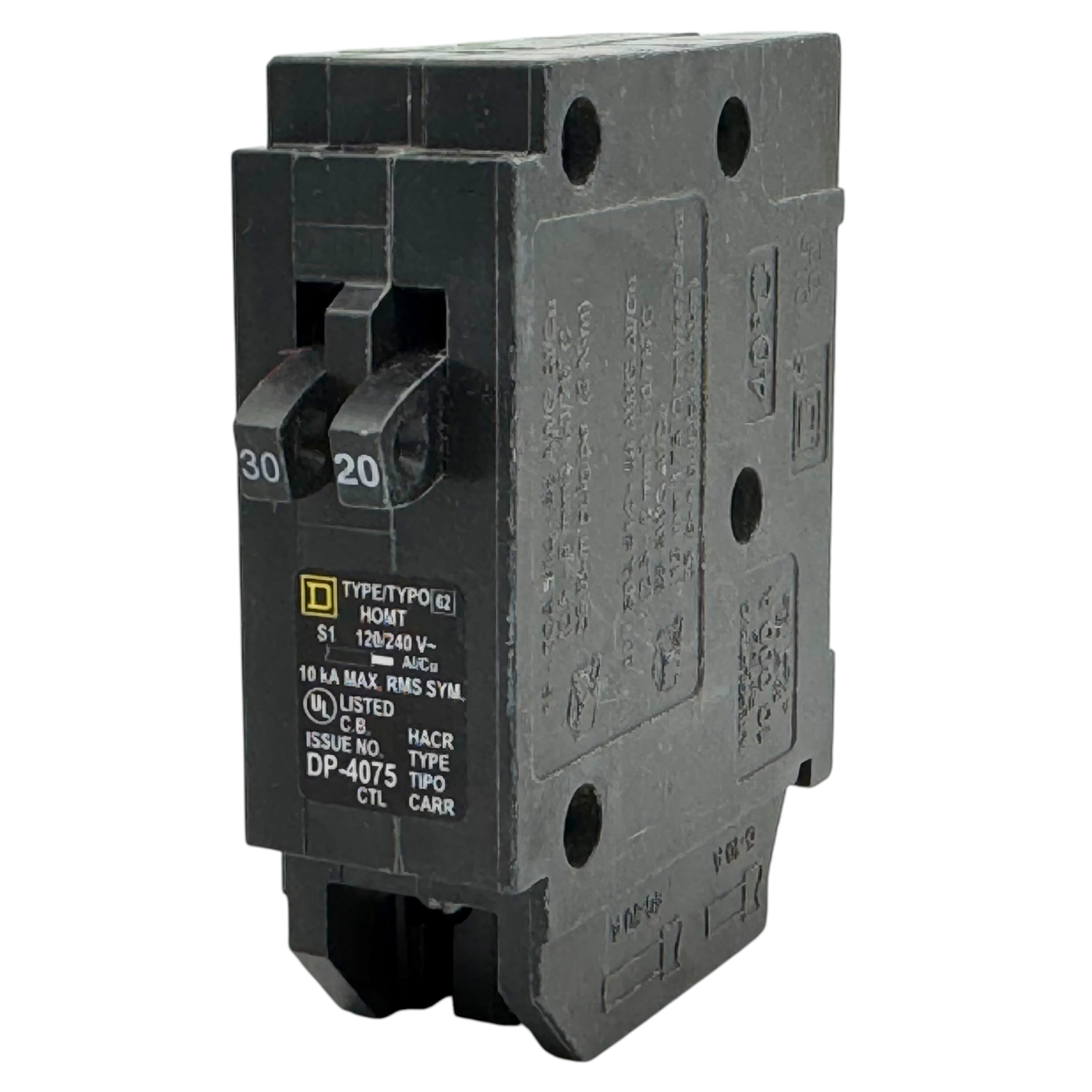

The Square D Homeline Tandem 30/20 Amp Circuit Breaker (HOMT3020) is a specialized "space-saver" device that provides two independent single-pole circuits—one 30 Amp and one 20 Amp—in the space of a single 1-inch breaker.

Designed for Homeline load centers, this thermal-magnetic breaker is the ideal solution for specific applications requiring a high-amperage 120V circuit (30A) alongside a standard power circuit (20A) without upgrading the panel.

Common Applications: RV/Camper subpanels (30A TT-30 + 20A Outlet), workshops with heavy duty 120V motors, and dedicated equipment circuits.

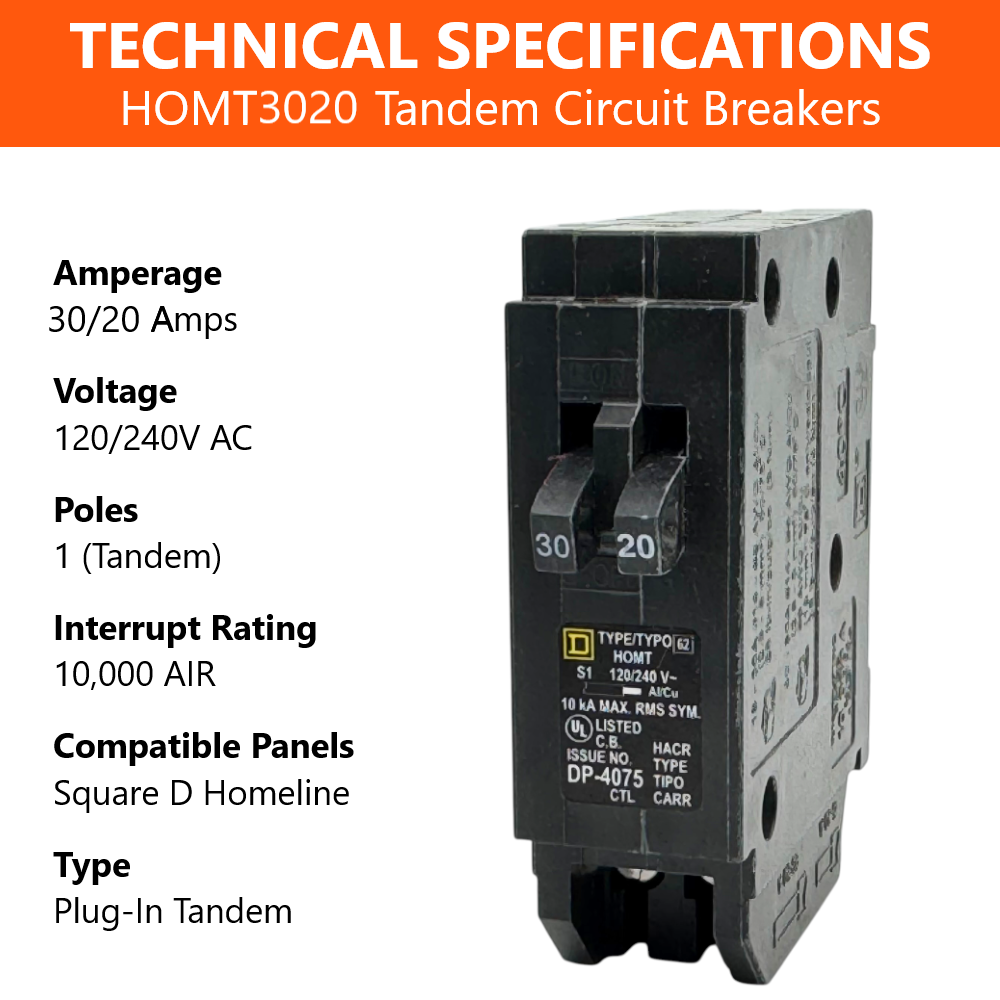

Technical Specifications

Brand: Square D (by Schneider Electric)
Series: Homeline (HOMT - Tandem)
Model: HOMT3020
Amperage: 30 Amp (Pole 1) / 20 Amp (Pole 2)
Poles: 1-Pole (Fits in 1 inch of space)
Voltage: 120/240V AC
Connection: Plug-On
Wire Size: Accepts #14–8 AWG (Al/Cu)

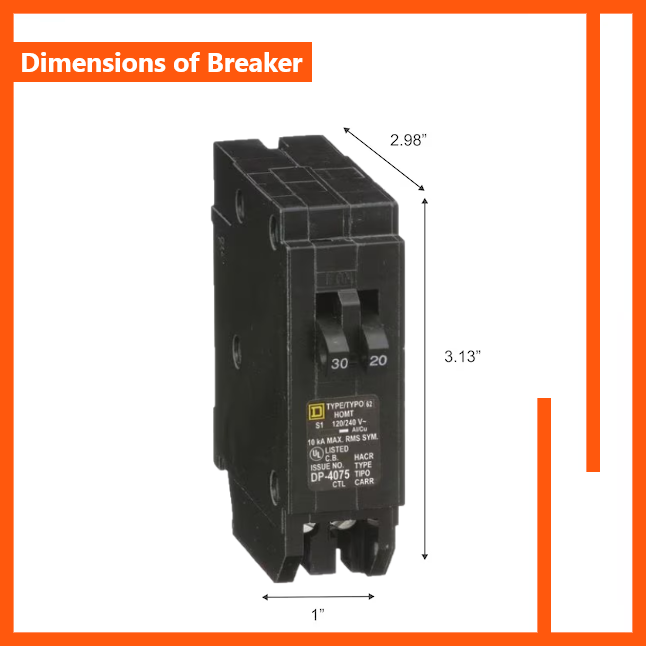

Space Required: 1 Space (1-inch width)

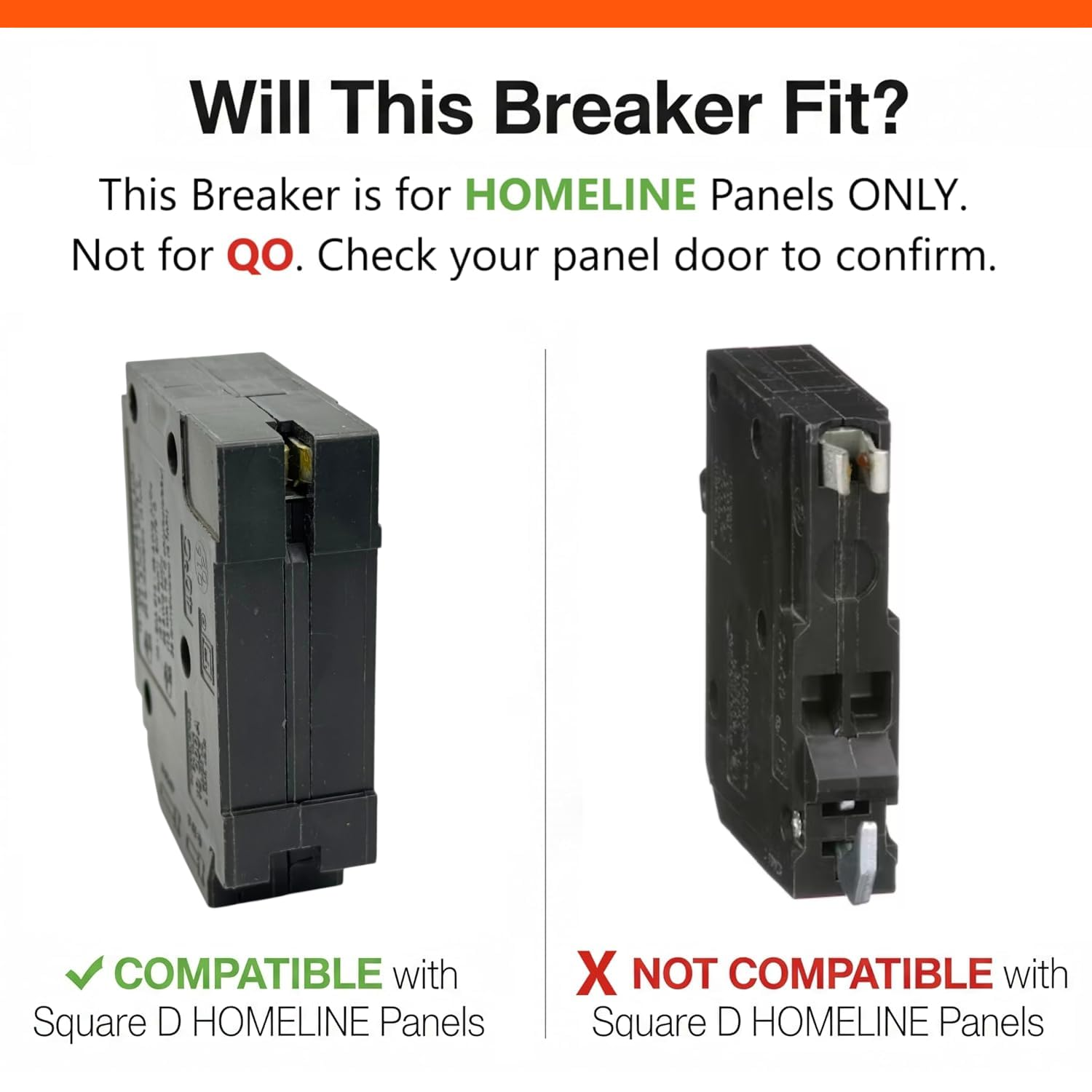

Compatibility & Application

Fits: Square D Homeline (HOM) panels designed for tandem breakers (Class CTL).
Does Not Fit: Square D QO panels or Homeline panels with "restrictive" bus fingers (Non-CTL slots).
